12152400

Active

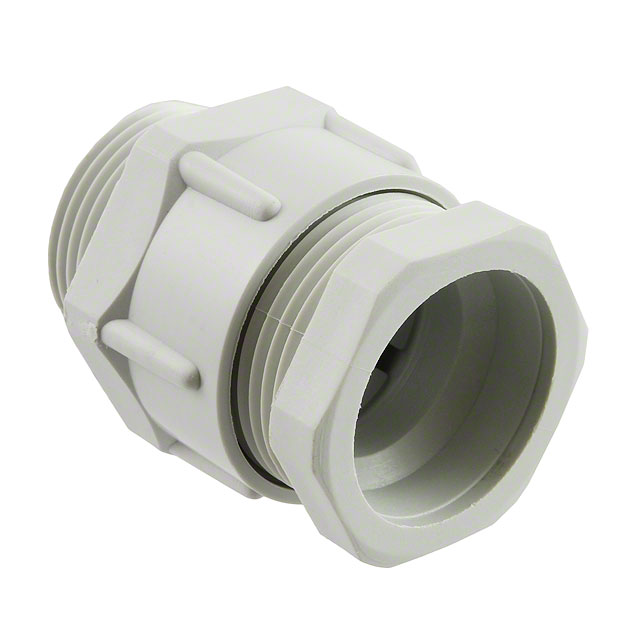

Bopla Enclosures

CABLE GLAND 14-18.01MM M25

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 14-18.01MM M25

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12152400	12152 Series

Color	Gray	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-30 - -20 ░C
Outside Cable Diameter (Max)	-	14 - 24 mm
Outside Cable Diameter (Max)	-	0.551 - 0.945 "
Outside Cable Diameter (Max) [Max] [diameter]	0.709 in	0.315 - 0.709 in
Outside Cable Diameter (Max) [Max] [diameter]	18.01 mm	8 - 18.01 mm
Outside Cable Diameter (Min) [Min] [diameter]	14 mm	6 - 18.01 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.551 in	0.236 - 0.709 in
Thread Length	0.433 in	0.433 in
Thread Length	11 mm	11 mm
Thread Size	M25x1.5	M20x1.5, M16x1.5, M32x1.5, M25x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 10-12MM M20 POLYAMID

Part	Ingress Protection	Thread Size	Thread Length	Thread Length	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Bopla Enclosures 12152200	IP65 - Dust Tight, Water Resistant	M20x1.5	0.433 in	11 mm	Cable Gland	0.472 in	12 mm	100 °C	-30 ░C	0.394 in	10 mm	Gray	Polyamide (PA), Nylon
Bopla Enclosures 12152300	IP65 - Dust Tight, Water Resistant	M20x1.5	0.433 in	11 mm	Cable Gland			100 °C	-30 ░C	0.472 in	12 mm	Gray	Polyamide (PA), Nylon	14 mm	0.551 "
Bopla Enclosures 12152000	IP65 - Dust Tight, Water Resistant	M16x1.5	0.433 in	11 mm	Cable Gland	0.315 in	8 mm	100 °C	-20 C	0.236 in	6 mm	Gray	Polyamide (PA), Nylon
Bopla Enclosures 12152100	IP65 - Dust Tight, Water Resistant	M20x1.5	0.433 in	11 mm	Cable Gland	0.394 "	10 mm	100 °C	-20 C	0.315 in	8 mm	Gray	Polyamide (PA), Nylon
Bopla Enclosures 12152500	IP65 - Dust Tight, Water Resistant	M32x1.5	0.433 in	11 mm	Cable Gland			100 °C	-30 ░C	0.709 in	18.01 mm	Gray	Polyamide (PA), Nylon	24 mm	0.945 in
Bopla Enclosures 12152400	IP65 - Dust Tight, Water Resistant	M25x1.5	0.433 in	11 mm	Cable Gland	0.709 in	18.01 mm	100 °C	-20 C	0.551 in	14 mm	Gray	Polyamide (PA), Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M25x1.5 Gray
