PE91141
ActivePasternack
N FEMALE TO N FEMALE ADAPTER, WI
PE91141
ActivePasternack
N FEMALE TO N FEMALE ADAPTER, WI
Description
General part information
PE91141

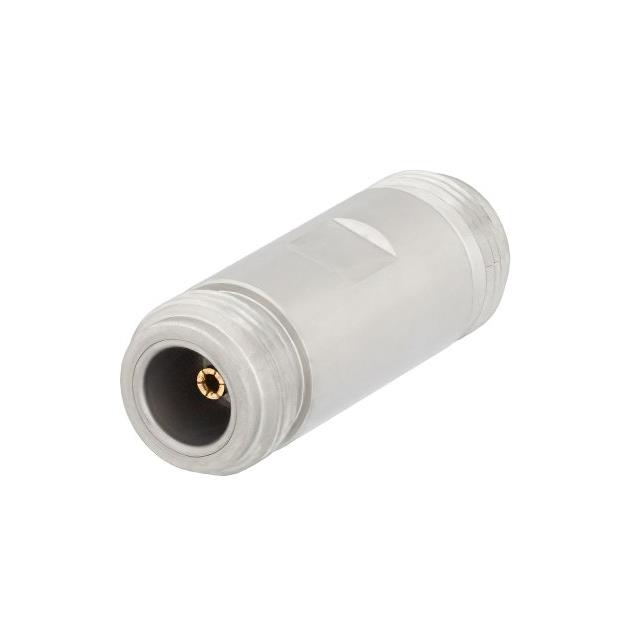

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE91141 |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -45 °C |
| Style | Straight |
