1607537
ObsoletePhoenix Contact

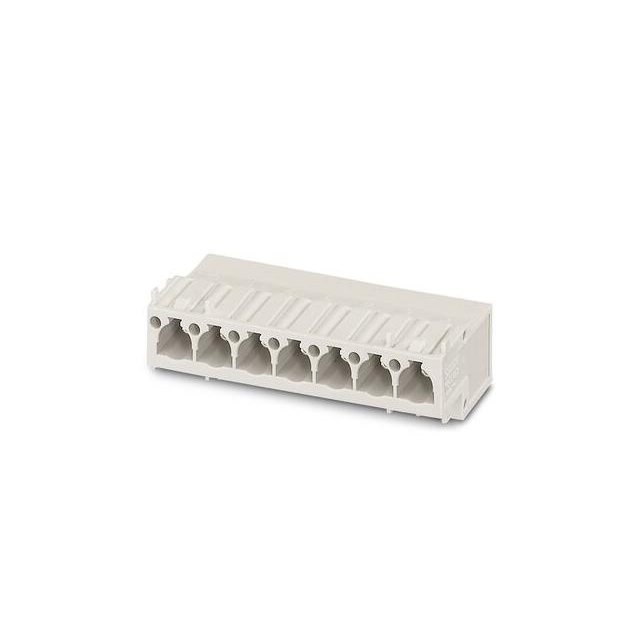

INSERT MALE 6POS+1GND SOLDER
1607537
ObsoletePhoenix Contact
INSERT MALE 6POS+1GND SOLDER
Description
General part information
1607537
Male Insert 6+Ground Position Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1607537 |
|---|---|
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Brass |
| Current Rating | 55 A |
| Gender | Male |
| Housing Material | Nylon, Polyamide, PA |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 6 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | Ground |
| Termination Style | Solder |
| Voltage Rating | 600 V |
