PKB.M1.0SL.NG
ActiveLEMO

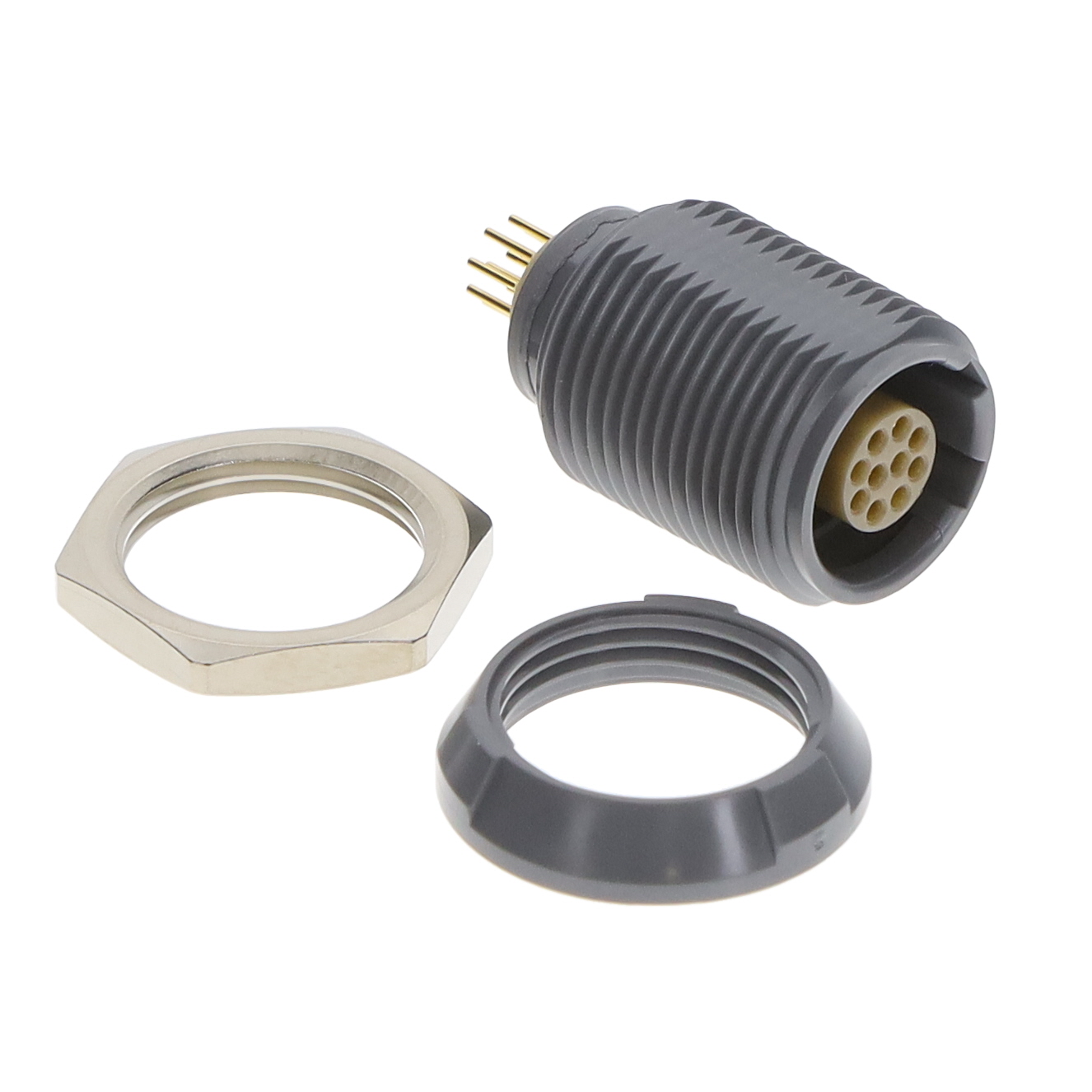

CONN RCPT FMALE 10POS GOLD SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKB.M1.0SL.NG
ActiveLEMO
CONN RCPT FMALE 10POS GOLD SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PKB.M1.0SL.NG | PKB.M1 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Color | Gray | Gray, Green, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 3 A | 2 - 3 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 10 | 10 - 14 |
| Operating Temperature [Max] | 170 °C | 150 - 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | B | B |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyetherimide (PEI) | Polysulfone (PSU), Polyetherimide (PEI) |
| Shell Size - Insert | M10 | M14, M10 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
PKB.M1 Series
CIRCULAR PUSH PULL CONNECTORS RECPT (CDB)14CTS
| Part | Color | Ingress Protection | Orientation | Insert Material | Number of Positions | Shell Size - Insert | Fastening Type | Shell Material | Contact Finish - Mating | Connector Type | Current Rating (Amps) | Mounting Feature | Primary Material | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PKB.M1.4GL.LZ | Gray | IP50 | B | Polyetheretherketone (PEEK) | 14 | M14 | Detent Lock, Push-Pull | Polysulfone (PSU) | Gold | Receptacle, Female Sockets | 2 A | Front and Rear Side Nut | Plastic | Unshielded | 150 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | ||
LEMO PKB.M1.0SL.NG | Gray | IP50 | B | Polyetheretherketone (PEEK) | 10 | M10 | Detent Lock, Push-Pull | Polyetherimide (PEI) | Gold | Receptacle, Female Sockets | 3 A | Front and Rear Side Nut | Plastic | Unshielded | 170 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Panel Mount, Through Hole | Solder |
LEMO PKB.M1.4GL.LV | Gray, Green | IP50 | B | Polyetheretherketone (PEEK) | 14 | M14 | Detent Lock, Push-Pull | Polysulfone (PSU) | Gold | Receptacle, Female Sockets | 2 A | Front and Rear Side Nut | Plastic | Unshielded | 150 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | ||
LEMO PKB.M1.4SL.NG | Gray | IP50 | B | Polyetheretherketone (PEEK) | 14 | M14 | Detent Lock, Push-Pull | Polyetherimide (PEI) | Gold | Receptacle, Female Sockets | 2 A | Front and Rear Side Nut | Plastic | Unshielded | 170 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Panel Mount, Through Hole | Solder |
LEMO PKB.M1.0SL.NN | IP50 | B | Polyetheretherketone (PEEK) | 10 | M10 | Detent Lock, Push-Pull | Polyetherimide (PEI) | Gold | Receptacle, Female Sockets | 3 A | Front and Rear Side Nut | Plastic | Unshielded | 170 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Panel Mount, Through Hole | Solder | |
LEMO PKB.M1.0GL.VG | Gray | IP50 | B | Polyetheretherketone (PEEK) | 10 | M10 | Detent Lock, Push-Pull | Polysulfone (PSU) | Gold | Receptacle, Female Sockets | 3 A | Front and Rear Side Nut | Plastic | Unshielded | 150 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Panel Mount, Right Angle, Through Hole | Solder |
LEMO PKB.M1.0TL.NN | Black | IP50 | B | Polyetheretherketone (PEEK) | 10 | M10 | Detent Lock, Push-Pull | Polyetherimide (PEI) | Gold | Receptacle, Female Sockets | 3 A | Front and Rear Side Nut | Plastic | Unshielded | 170 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Panel Mount, Through Hole | Solder |
LEMO PKB.M1.0SL.NZ | Gray | IP50 | B | Polyetheretherketone (PEEK) | 10 | M10 | Detent Lock, Push-Pull | Polyetherimide (PEI) | Gold | Receptacle, Female Sockets | 3 A | Front and Rear Side Nut | Plastic | Unshielded | 170 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Panel Mount, Through Hole | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.92 | |
| 10 | $ 32.33 | |||
| 25 | $ 30.93 | |||
| 50 | $ 29.94 | |||
| 100 | $ 28.94 | |||
| 250 | $ 27.34 | |||
Description
General part information
PKB.M1 Series
10 Position Circular Connector Receptacle, Female Sockets Solder
