W1978
ActivePulse Electronics

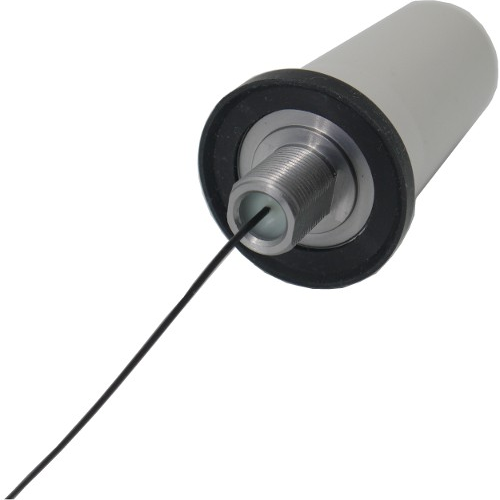

ANTENNA EXTERNAL 3.5DBI GAIN 960MHZ/2170MHZ/2700MHZ BAG
W1978
ActivePulse Electronics
ANTENNA EXTERNAL 3.5DBI GAIN 960MHZ/2170MHZ/2700MHZ BAG
Description
General part information
W1978
RF ANTENNA General Purpose Dome U.FL (UMCC), IPEX MHF1 Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | W1978 |
|---|---|
| Antenna Type | Dome |
| Applications | General Purpose |
| Features | 700mm, Cable |
| Frequency (Center/Band) | 2.5GHz, 1.94GHz, 829MHz |
| Frequency (Center/Band) - 1 | 829 MHz |
| Frequency (Center/Band) - 2 | 1.94 GHz |
| Frequency (Center/Band) - 3 | 2.5 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Frequency Range (Band 3) Maximum | 2.7 GHz |
| Frequency Range (Band 3) Minimum | 2.3 GHz |
| Gain | 2.7 dBi, 1.4 dBi, 3.5 dBi |
| Height (Max) | 3.039 in |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 3 |
| Power - Max | 10 VA |
| Termination | IPEX MHF1, U.FL (UMCC) |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 2.5, 2 |
| VSWR Maximum | 2.5 |
| VSWR Minimum | 2 |
