ERM5-030-05.0-L-DV-TR

Active

Samtec Inc.

CONN HDR 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF5 Series Other Related Documents 03 Datasheet +2

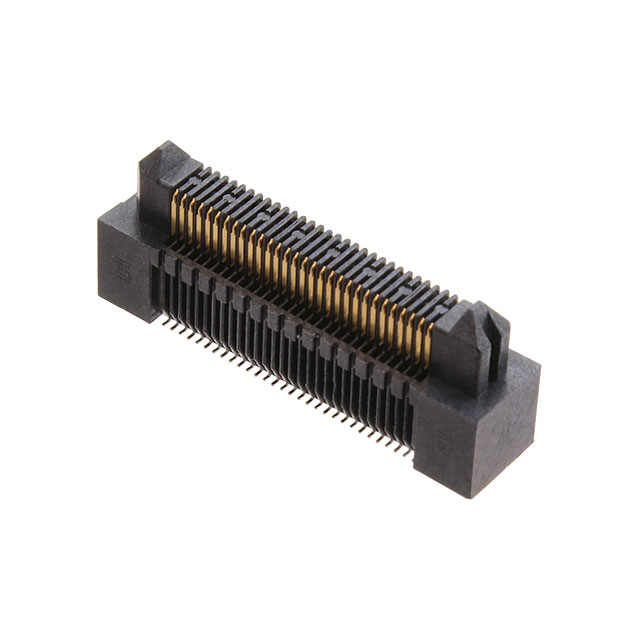

ERM5-030-05.0-L-DV-TR

Active

Samtec Inc.

CONN HDR 60POS SMD GOLD

Deep-Dive with AI

DocumentsERF5 Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM5-030-05.0-L-DV-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.309 in
Height Above Board	7.85 mm
Mated Stacking Heights	10 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

ERM5-030 Series

Part	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Features	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type
Samtec Inc. ERM5-030-04.0-L-DV-WT-TR	Surface Mount	2	0.5 mm	0.02 in	9 mm 11 mm	Board Guide Solder Retention	60	0.27 in	6.85 mm	10 Áin	0.25 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-05.0-L-DV-FL-K-TR	Surface Mount	2	0.5 mm	0.02 in	10 mm 12 mm	Board Guide Friction Lock Pick and Place	60	0.309 in	7.85 mm	10 Áin	0.25 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-05.0-S-DV-K-TR	Surface Mount	2	0.5 mm	0.02 in	10 mm 12 mm	Board Guide Pick and Place	60	0.309 in	7.85 mm	30 Áin	0.76 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-02.0-L-DV-WT-TR	Surface Mount	2	0.5 mm	0.02 in	7 mm 9 mm	Board Guide Solder Retention	60	0.191 in	4.85 mm	10 Áin	0.25 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-04.0-L-DV-TR	Surface Mount	2	0.5 mm	0.02 in	9 mm 11 mm	Board Guide	60	0.27 in	6.85 mm	10 Áin	0.25 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-05.0-L-DV-TR	Surface Mount	2	0.5 mm	0.02 in	10 mm 12 mm	Board Guide	60	0.309 in	7.85 mm	10 Áin	0.25 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-02.0-L-DV-K-TR	Surface Mount	2	0.5 mm	0.02 in	7 mm 9 mm	Board Guide Pick and Place	60	0.191 in	4.85 mm	10 Áin	0.25 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-02.0-S-DV-TR	Surface Mount	2	0.5 mm	0.02 in	7 mm 9 mm	Board Guide	60	0.191 in	4.85 mm	30 Áin	0.76 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-02.0-L-DV-FL-TR	Surface Mount	2	0.5 mm	0.02 in	7 mm 9 mm	Board Guide Friction Lock	60	0.191 in	4.85 mm	10 Áin	0.25 Ám	Gold	Header Outer Shroud Contacts
Samtec Inc. ERM5-030-04.0-L-DV-FL-TR	Surface Mount	2	0.5 mm	0.02 in	9 mm 11 mm	Board Guide Friction Lock	60	0.27 in	6.85 mm	10 Áin	0.25 Ám	Gold	Header Outer Shroud Contacts
