391-086-521-201

Active

EDAC Inc.

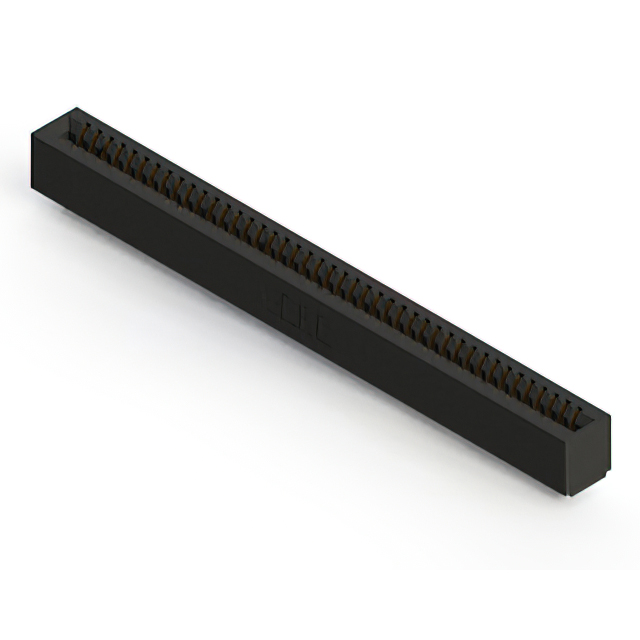

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Card Edge Brochure

391-086-521-201

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Card Edge Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	391-086-521-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

391-086 Series

Part	Number of Positions/Bay/Row [custom]	Number of Rows	Read Out	Contact Material	Pitch [x]	Pitch [x]	Gender	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish	Mounting Type	Material - Insulation	Contact Type	Termination Rows	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Features
EDAC Inc. 391-086-522-201	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Through Hole	Polyester Thermoplastic	Semi Bellows	2	Black	Solder	10 Áin	0.25 Ám
EDAC Inc. 391-086-524-202	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Through Hole	Polyester Thermoplastic	Semi Bellows	2	Black	Solder	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 391-086-556-203	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Through Hole	Polyester Thermoplastic	Semi Bellows	2	Black	Solder	10 Áin	0.25 Ám	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Card Extender
EDAC Inc. 391-086-560-201	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Board Edge Straddle Mount	Polyester Thermoplastic	Semi Bellows	2	Black	Solder	10 Áin	0.25 Ám				Card Extender
EDAC Inc. 391-086-520-203	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Through Hole	Polyester Thermoplastic	Semi Bellows	2	Black	Solder	10 Áin	0.25 Ám	2.95 mm	0.116 in	Floating Bobbin Flush Mount
EDAC Inc. 391-086-555-201	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Board Edge Straddle Mount	Polyester Thermoplastic	Semi Bellows	2	Black	Solder Eyelet(s)	10 Áin	0.25 Ám				Card Extender
EDAC Inc. 391-086-521-208	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Through Hole	Polyester Thermoplastic	Semi Bellows	2	Black	Solder	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 391-086-520-207	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Through Hole	Polyester Thermoplastic	Semi Bellows	2	Black	Solder	10 Áin	0.25 Ám			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 391-086-555-208	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Through Hole	Polyester Thermoplastic	Semi Bellows	2	Black	Solder Eyelet(s)	10 Áin	0.25 Ám			4-40 Flush Mount Threaded Insert Top Opening	Card Extender
EDAC Inc. 391-086-521-201	43	2	Dual	Copper Alloy	2.54 mm	0.1 in	Female	86	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	Through Hole	Polyester Thermoplastic	Semi Bellows	2	Black	Solder	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.53
Newark	Each	1	$ 18.04
		100	$ 11.18
		250	$ 9.31
		500	$ 7.37
		1000	$ 6.34

Description

General part information

391-086 Series

86 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
