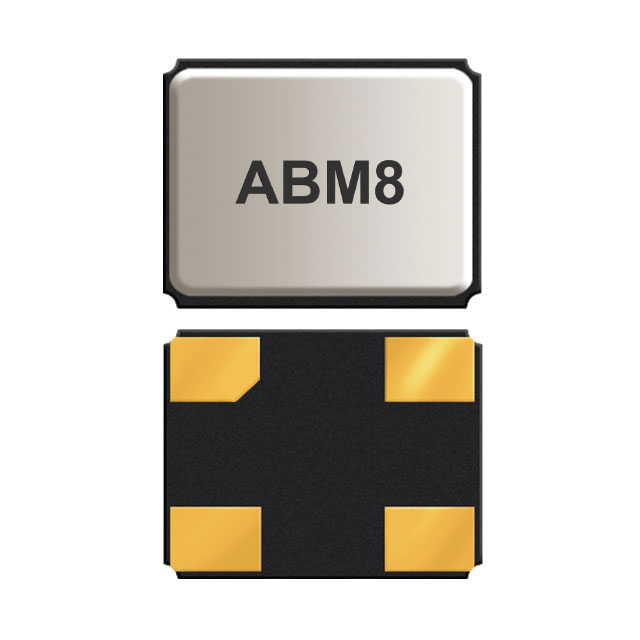

ABM8-55.46667MHZ-10-D3Y-T
ActiveAbracon LLC
CRYSTAL 55.46667MHZ 10PF SMD
ABM8-55.46667MHZ-10-D3Y-T
ActiveAbracon LLC
CRYSTAL 55.46667MHZ 10PF SMD
Description
General part information
ABM8-55.46667MHZ-10-D3Y-T
55.46667 MHz ±25ppm Crystal 10pF 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ABM8-55.46667MHZ-10-D3Y-T |
|---|---|
| Frequency | 55.46667 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 25 ppm |
| Height - Seated (Max) | 0.031 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
