TPSMA6L22A-AQ
ActiveDiotec Semiconductor
TVS DIODE 22VWM 35.5VC SMAF
TPSMA6L22A-AQ
ActiveDiotec Semiconductor
TVS DIODE 22VWM 35.5VC SMAF
Description
General part information
TPSMA6L22A-AQ
35.5V Clamp 16.9A Ipp Tvs Diode Surface Mount SMAF
Technical Specifications
Parameters and characteristics for this part
| Specification | TPSMA6L22A-AQ |
|---|---|
| Current - Peak Pulse | 16.9 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -50 °C |

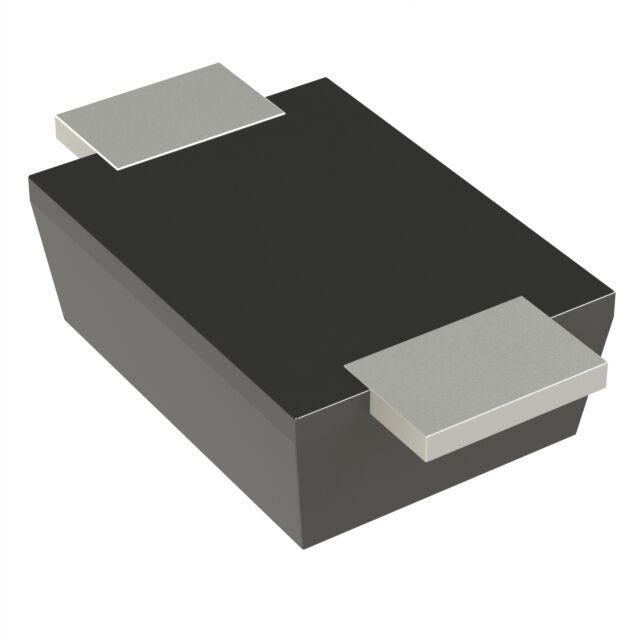

| Package / Case | DO-221AC, SMA Flat Leads |
| Package Name | SMAF |
| Power - Peak Pulse | 600 W |
| Power Line Protection | No |
| Qualification | AEC-Q101 |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 24.4 V |
| Voltage - Clamping (Max) | 35.5 V |
| Voltage - Reverse Standoff (Typ) | 22 V |
