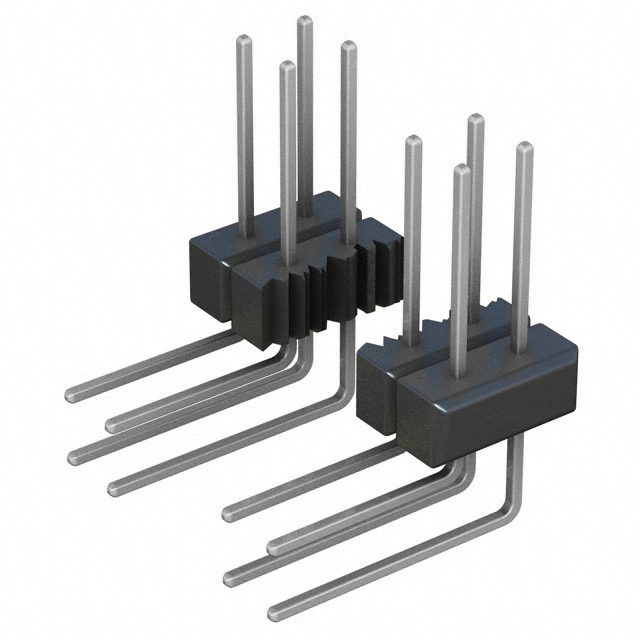

PEC24DBCN

Active

Sullins Connector Solutions

BOARD CONNECTOR, 48 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, WIRE WRAP TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC24DBCN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	7.62 mm
Contact Length - Post [x]	0.3 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC24 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Material Flammability Rating	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Contact Type	Contact Material	Insulation Material	Contact Shape	Connector Type	Number of Positions Loaded	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Current Rating (Amps)	Shrouding	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Style	Insulation Color	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PEC24SFAN	2.54 çm	100 çin	Through Hole	Solder	24	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin	0.538 "	13.67 mm	Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	1	0.12 in	3.05 mm	0.318 "	8.08 mm	3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Board to Board Cable	Black
Sullins Connector Solutions PEC24DADN	2.54 çm	100 çin	Through Hole	Solder	48	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin	0.75 in	19.05 mm	Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	2	0.42 in	10.67 mm	0.23 in		3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Board to Board Cable	Black	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC24SAHN	2.54 çm	100 çin	Through Hole	Solder	24	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin	1.15 in	29.21 mm	Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	1	0.82 in	20.83 mm	0.23 in		3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Board to Board Cable	Black	5.84 mm
Sullins Connector Solutions PEC24DBAN	2.54 çm	100 çin	Through Hole Right Angle	Solder	48	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin			Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	2			0.23 in		3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.24 in	6.1 mm	Board to Board Cable	Black	5.84 mm	2.54 mm	0.1 in	2.54 mm	0.1 in
Sullins Connector Solutions PEC24DACN	2.54 çm	100 çin	Through Hole	Solder	48	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin		0.65 in	Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	2	0.32 in	8.13 mm	0.23 in		3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Board to Board Cable	Black	5.84 mm	2.54 mm	0.1 in			16.51 mm
Sullins Connector Solutions PEC24SBDN	2.54 çm	100 çin	Through Hole Right Angle	Solder	24	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin			Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	1	0.4 in	10.16 mm	0.23 in		3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.14 in	3.56 mm	Board to Board Cable	Black	5.84 mm
Sullins Connector Solutions PEC24SACN	2.54 çm	100 çin	Through Hole	Solder	24	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin		0.65 in	Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	1	0.32 in	8.13 mm	0.23 in		3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Board to Board Cable	Black	5.84 mm					16.51 mm
Sullins Connector Solutions PEC24DABN	2.54 çm	100 çin	Through Hole	Solder	48	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin	0.56 in	14.22 mm	Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	2			0.23 in		3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Board to Board Cable	Black	5.84 mm	2.54 mm	0.1 in	5.84 mm	0.23 in
Sullins Connector Solutions PEC24SFCN	2.54 çm	100 çin	Through Hole	Solder	24	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin	0.738 "	18.75 mm	Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	1	0.32 in	8.13 mm	0.318 "	8.08 mm	3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.1 in	2.54 mm	Board to Board Cable	Black
Sullins Connector Solutions PEC24DBCN	2.54 çm	100 çin	Through Hole Right Angle	Solder	48	125 °C	-65 ░C	Push-Pull	UL94 V-0	Tin			Male Pin	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Square	Breakaway Header	All	2	0.3 "	7.62 mm	0.23 in		3 A	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	0.24 in	6.1 mm	Board to Board Cable	Black	5.84 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.92
		10	$ 4.53
		100	$ 3.51
		500	$ 2.98
		1000	$ 2.90

Description

General part information

PEC24 Series

Connector Header Through Hole, Right Angle 48 position 0.100" (2.54mm)
