MN24-2RK

Active

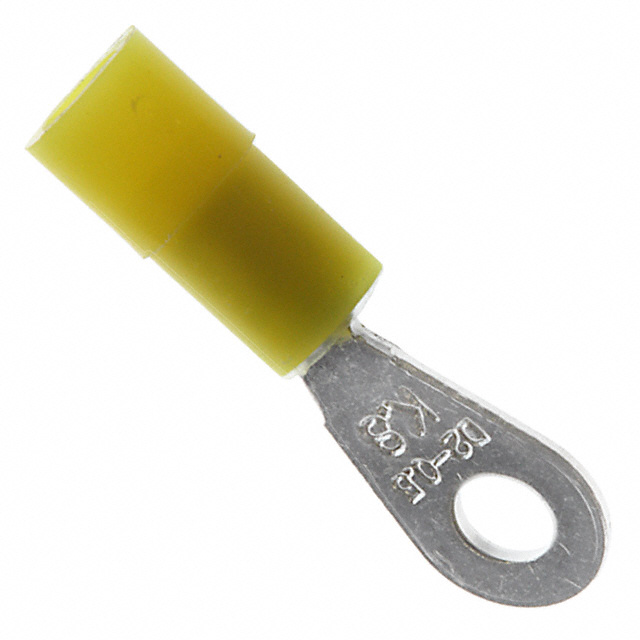

NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMINAL

Search across all available documentation for this part.

Active

NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMINAL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 2 Stud Circular 24-26 AWG Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MN24-2RK	MN24 Series

Color	Yellow	Yellow
Contact Finish	Tin	Tin
Contact Material	Copper	Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated
Insulation Diameter [diameter]	0.09 in	0.09 in
Insulation Diameter [diameter]	2.29 mm	2.29 mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	2 Stud	2 - 10 Stud
Terminal Type	Circular	Circular
Termination	Crimp	Crimp
Thickness	0.02 in	0.02 in
Thickness	0.51 mm	0.51 mm
Width - Outer Edges	-	7.87 mm
Width - Outer Edges [y]	0.2 in	0.2 - 0.31 in
Width - Outer Edges [y]	5.08 mm	5.08 - 6.1 mm
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	24 AWG	22 - 24 AWG

NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMINAL

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Insulation	Terminal Type	Material - Insulation	Contact Finish	Thickness	Thickness	Stud/Tab Size	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Color	Features	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Width - Outer Edges
3M MN24-6RK	6.1 mm	0.24 in	Copper	Insulated	Circular	Nylon, Polyamide (PA)	Tin	0.02 in	0.51 mm	6 Stud	0.09 in	2.29 mm	Yellow	Brazed Seam	Free Hanging (In-Line)	22 AWG	26 AWG	Crimp
3M MN24-2RK	5.08 mm	0.2 in	Copper	Insulated	Circular	Nylon, Polyamide (PA)	Tin	0.02 in	0.51 mm	2 Stud	0.09 in	2.29 mm	Yellow	Brazed Seam	Free Hanging (In-Line)	24 AWG	26 AWG	Crimp
3M MN24-10RK		0.31 in	Copper	Insulated	Circular	Nylon, Polyamide (PA)	Tin	0.02 in	0.51 mm	10 Stud	0.09 in	2.29 mm	Yellow	Brazed Seam	Free Hanging (In-Line)	24 AWG	26 AWG	Crimp	7.87 mm
