787394-7

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 68POS R/A SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1344	$ 8.48

General part information

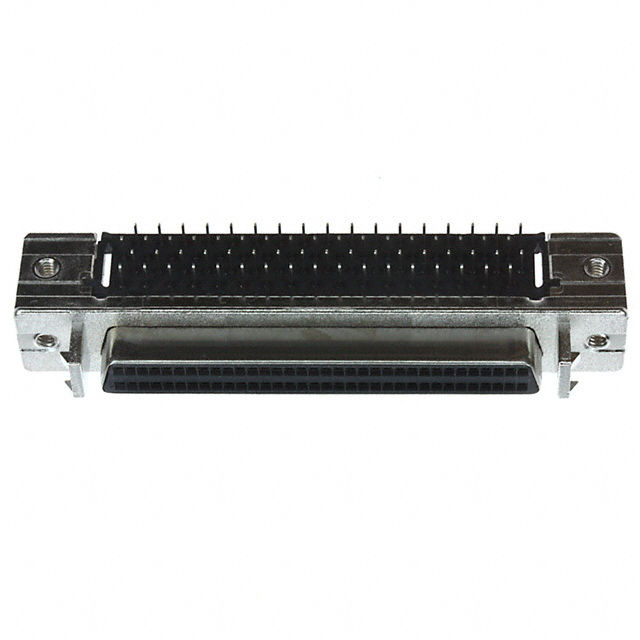

68 Position D-Type Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	787394-7	787394 Series

Backset Spacing	3.71 mm	3.71 mm
Backset Spacing	0.146 in	0.146 in
Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Thermoplastic	Thermoplastic
Features	Shielded	Shielded
Flange Feature	Housing/Shell (2-56), Latchblocks	Housing/Shell (2-56), Latchblocks
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Positions	68	50 - 80
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	Solder	Solder
Voltage Rating	30 VDC	30 VDC

CONN D-TYPE RCPT 68POS R/A SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Termination	Mounting Type	Voltage Rating	Number of Rows	Connector Style	Backset Spacing	Backset Spacing	Connector Type	Shell Material, Finish	Material Flammability Rating	Features	Dielectric Material	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Flange Feature	Number of Positions	Contact Finish	Color	Contact Type
TE Connectivity AMP Connectors 787394-7	105 ░C	-55 °C	Phosphor Bronze	Solder	Board Edge, Right Angle, Through Hole	30 VDC	2	D-Type	3.71 mm	0.146 in	Receptacle, Female Sockets	Nickel Plated, Steel	UL94 V-0	Shielded	Thermoplastic	0.05	0.1	Housing/Shell (2-56), Latchblocks	68	Gold	Black	Signal
