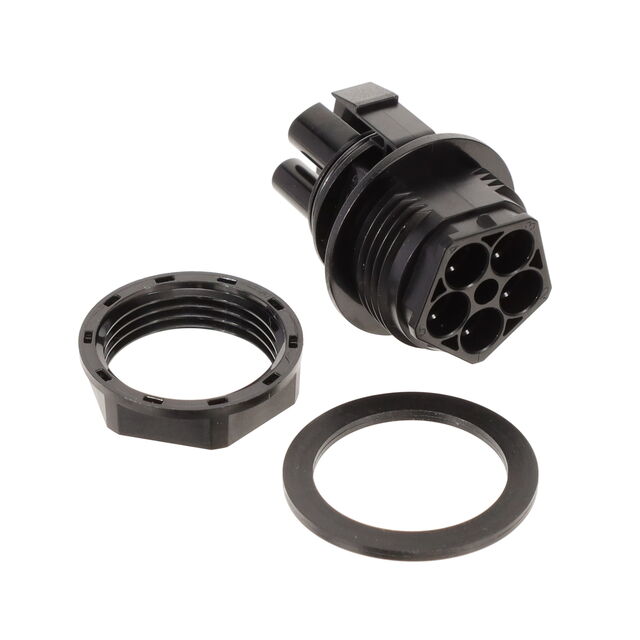

SK7-021M05

Active

Anderson Power Products, Inc.

CONN PLG HSG FMALE 5POS PNL MT

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN PLG HSG FMALE 5POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	SK7-021M05

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions [custom]	5
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	21-5
Shielding	Unshielded
Type	For Female Sockets

CONN PLG HSG FMALE 5POS PNL MT

Part	Type	Material Flammability Rating	Fastening Type	Orientation	Shell Material	Housing Color	Shell Size - Insert	Contact Type	Number of Positions [custom]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Note	Mounting Feature	Connector Type	Ingress Protection	Insert Material
Anderson Power Products, Inc. SK7-021M05	For Female Sockets	UL94 V-0	Latch Lock	Keyed	Polycarbonate (PC)	Black	21-5	Crimp	5	Unshielded	-20 C	105 ░C	Circular	Contacts Not Included	Bulkhead - Rear Side Nut	Plug Housing	IP68 - Dust Tight, Waterproof	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (Power) Position Circular Connector Plug Housing Panel Mount
