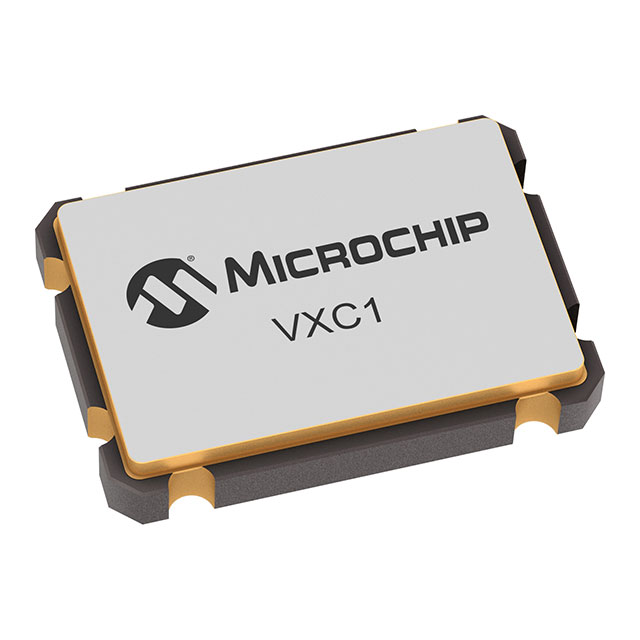

VXC1-1139-12M0000000
ActiveMicrochip Technology
SMD 5X7 1.7MM TALL 4PAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsVXC1 Data Sheet
VXC1-1139-12M0000000
ActiveMicrochip Technology
SMD 5X7 1.7MM TALL 4PAD
Deep-Dive with AI
DocumentsVXC1 Data Sheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VXC1-1139-12M0000000 | VXC1 Series |
|---|---|---|
| - | - | |
| ESR (Equivalent Series Resistance) | 50 Ohms | 50 Ohms |
| Frequency | 12 MHz | 12 MHz |
| Frequency Tolerance | 20 ppm | 20 ppm |
| Height - Seated (Max) [Max] [z] | 1.3 mm | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in | 0.051 in |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Mode | Fundamental | Fundamental |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm | 7 mm |
| Size / Dimension [x] | 0.276 " | 0.276 " |
| Size / Dimension [y] | 5 mm | 5 mm |
| Size / Dimension [y] | 0.197 " | 0.197 " |
| Type | MHz Crystal | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | T/R | 1 | $ 1.22 | |
| 25 | $ 1.01 | |||
| 100 | $ 0.92 | |||
| 1000 | $ 0.89 | |||
| 5000 | $ 0.88 | |||
VXC1 Series
SMD 5x7 1.7mm tall 4Pad
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Type | Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | ESR (Equivalent Series Resistance) | Frequency Tolerance | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VXC1-1F4-25M0000000 | |||||||||||||
Microchip Technology VXC1-1139-12M0000000 | 7 mm | 5 mm | 0.276 " | 0.197 " | Surface Mount | MHz Crystal | 12 MHz | 1.3 mm | 0.051 in | 4-SMD, No Lead | 50 Ohms | 20 ppm | Fundamental |
Description
General part information
VXC1 Series
VXC1 standard crystals come in a standard 5x7x1.7mm ceramic smd package with a frequency range of 10MHz to 100MHz.
