CRMA1206AF6M00DKEF
ActiveVishay Dale

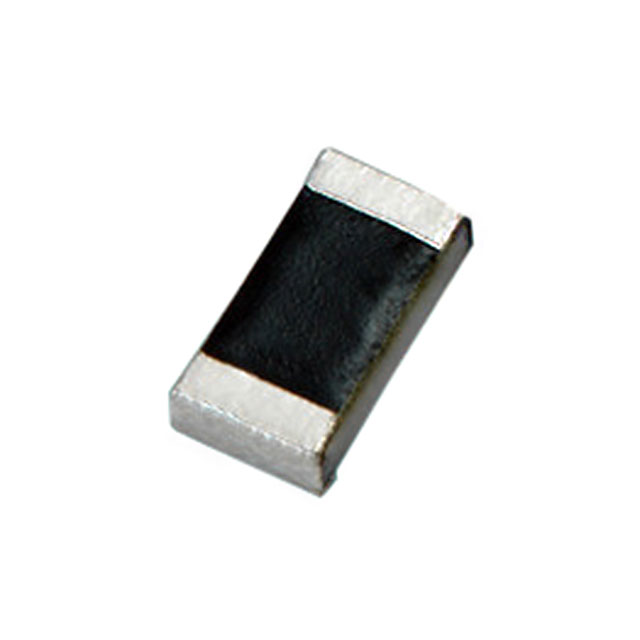

CRMA1206, 3-SIDED, NICKEL BARRIE
CRMA1206AF6M00DKEF
ActiveVishay Dale
CRMA1206, 3-SIDED, NICKEL BARRIE
Description
General part information
CRMA1206AF6M00DKEF
6 MOhms ±0.5% 0.3W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, High Voltage Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | CRMA1206AF6M00DKEF |
|---|---|
| Composition | Thick Film |
| Features | High Voltage, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.029 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 300 mW |
| Ratings | AEC-Q200 |
| Resistance | 6 MOhm |
| Size / Dimension Length | 0.125 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 0.5 % |
