FPL.00.250.NTD

Active

LEMO

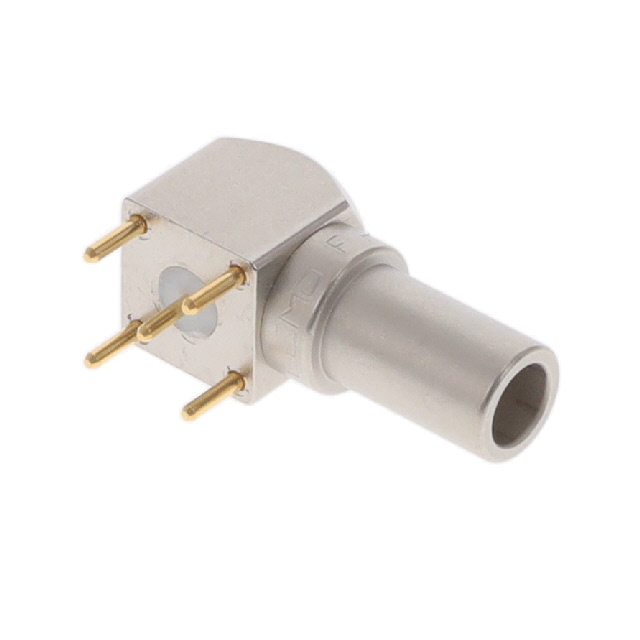

CONN NIMCAMAC PLUG R/A 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC PLUG R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	FPL.00.250.NTD

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

CONN NIMCAMAC PLUG R/A 50OHM PCB

Part	Center Contact Plating	Voltage Rating	Mounting Type	Shield Termination	Center Contact Material	Connector Type	Connector Style	Body Finish	Contact Termination	Number of Ports	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Material	Fastening Type	Housing Color	Dielectric Material	Impedance
LEMO FPL.00.250.NTD	Gold	700 VDC	Through Hole, Right Angle	Solder	Brass	Male Pin, Plug	NIM-CAMAC CD/N 549	Nickel	Solder	1	IP50	-55 °C	260 ░C	5000	Brass	Push-Pull	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
