3073869
ActivePhoenix Contact
CONN TERM BLK DISCONNECT 6-24AWG
3073869
ActivePhoenix Contact
CONN TERM BLK DISCONNECT 6-24AWG
Description
General part information
3073869

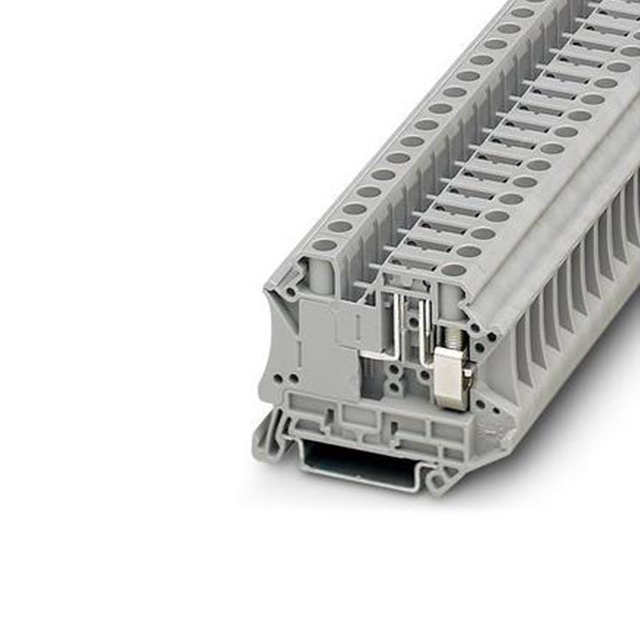

Terminal Block Connector 2 Position Disconnect Gray 6-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3073869 |
|---|---|
| Color | Gray |
| Current - IEC | 20 A |
| Current - UL | 20 A |
| Disconnect Type | Open |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 10 mm |
| Terminal Width | 8.2 mm |
| Termination Style | Screw |
| Type | Disconnect |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 6 AWG |
| Wire Gauge or Range - mm² (Maximum) | 10 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
