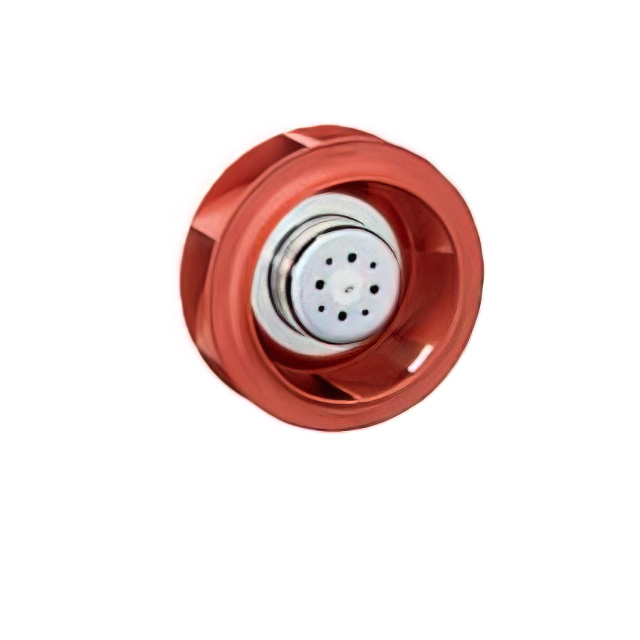

RER175-42/18/2TDPU
Activeebm-papst Inc.
S-FORCE EC RADIAL BLOWER
RER175-42/18/2TDPU
Activeebm-papst Inc.
S-FORCE EC RADIAL BLOWER
Description
General part information
RER175-42/18/2TDPU
Fan Tubeaxial 48VDC Round - 175mm Dia Ball 577 CFM (16.16mł/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | RER175-42/18/2TDPU |
|---|---|
| Air Flow | 577 CFM |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Lifetime | 102500 Hrs |
| Operating Temperature (Max) | 149 °F |
| Operating Temperature (Min) | -4 °F |
| Power (Watts) | 166 W |
| RPM | 5400 RPM |
| Size / Dimension Diameter | 175 mm |
| Size / Dimension Shape | Round |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 48 VDC |
| Voltage Range (Max) | 72 VDC |
| Voltage Range (Min) | 36 VDC |
| Width | 69 mm |
