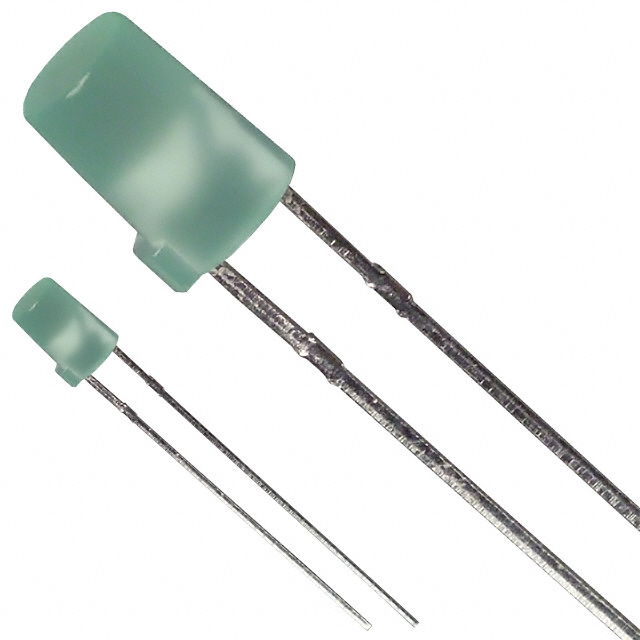

HLMPM501
ActiveEverlight Electronics Co Ltd
LED GREEN DIFFUSED 4MM T/H
HLMPM501
ActiveEverlight Electronics Co Ltd
LED GREEN DIFFUSED 4MM T/H
Description
General part information
HLMPM501
Green LED Indication - Discrete 2.3V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMPM501 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 6.24 mm |
| Lens Color | Green |
| Lens Diameter | 3.99 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Dimension | 4 mm |
| Package Name | 4mm FLAT TOP |
| Package Type | FLAT TOP |
| Supplier Device Package Shape | FLAT TOP |
| Supplier Device Package Size | 4 mm |
| Viewing Angle | 135 ° |
| Voltage - Forward (Vf) (Typ) | 2.3 V |
| Wavelength - Peak | 565 nm |
