9927 060500

Active

Belden Inc.

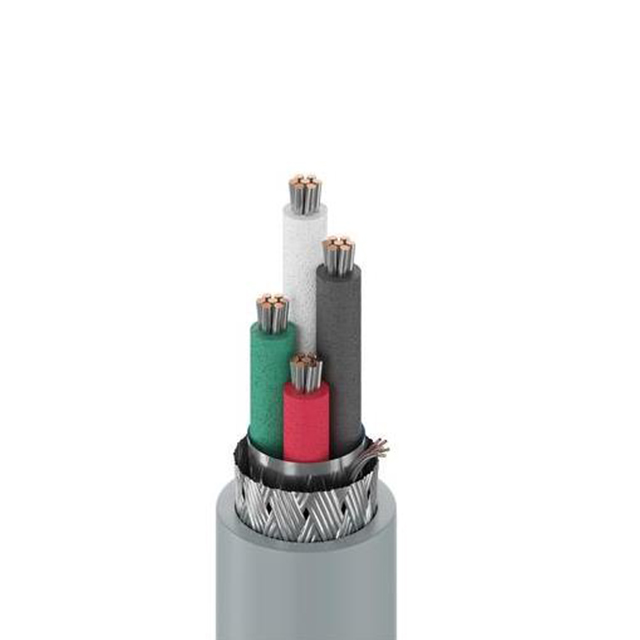

CABLE 4CON 24AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4CON 24AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9927 060500

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.219 in
Jacket (Insulation) Diameter [diameter]	5.56 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Features	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Usage	Ratings	Shield Type	Conductor Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Number of Conductors	Shield Material	Jacket (Insulation) Material	Length	Length
Belden Inc. 9927 060500	Chrome	32 AWG	7	0.219 in	5.56 mm	65 % 100 %	Drain Wire	Multi-Conductor	-30 ░C	80 C	500 '	152.4 m	Computer	UL Style 2919	Braid Foil	Copper Tinned	24 AWG	0.889 mm	0.035 in	Foam Polyethylene (FPE)	4	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)
Belden Inc. 9927 0601000	Chrome	32 AWG	7	0.219 in	5.56 mm	65 % 100 %	Drain Wire	Multi-Conductor	-30 ░C	80 C			Computer	UL Style 2919	Braid Foil	Copper Tinned	24 AWG	0.889 mm	0.035 in	Foam Polyethylene (FPE)	4	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.54

General part information

4 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
