Description

General part information

T191 Series

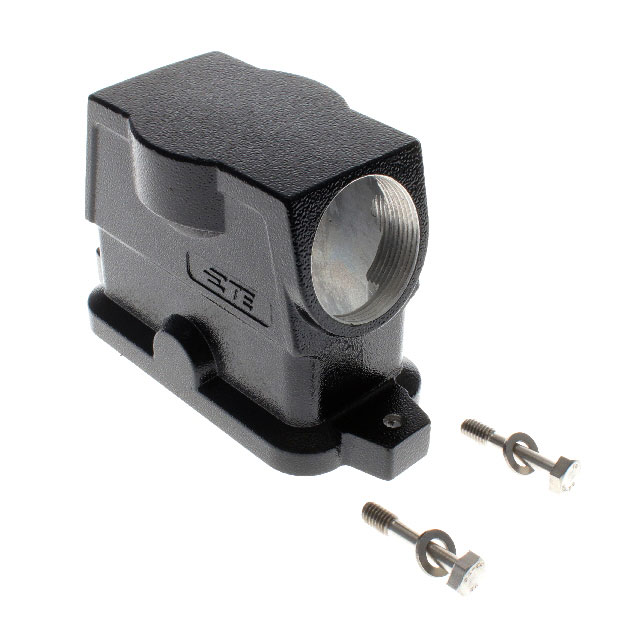

Hood Connector Side Entry PG29 H16B IP68 - Dust Tight, Waterproof

Technical Specifications

Parameters and characteristics for this part

SpecificationT1912160129-009
Connector TypeHood
FeaturesEMC Resistant, Corrosion Resistant
Housing ColorBlack
Housing FinishPowder Coated
Housing MaterialAluminum Alloy, Die Cast
Ingress Protection DescriptionDust Tight, Waterproof
Ingress Protection IP RatingIP68
Lock LocationScrew Locks on Hood
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
SizeH16B
Size / Dimension Height3.15 in
Size / Dimension Length5.118 in
Size / Dimension Width2.094 in
StyleSide Entry
Thread SizePG29

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

T1912160129-009 | Datasheet
