Q-7201S0008084I

Active

Amphenol Custom Cable

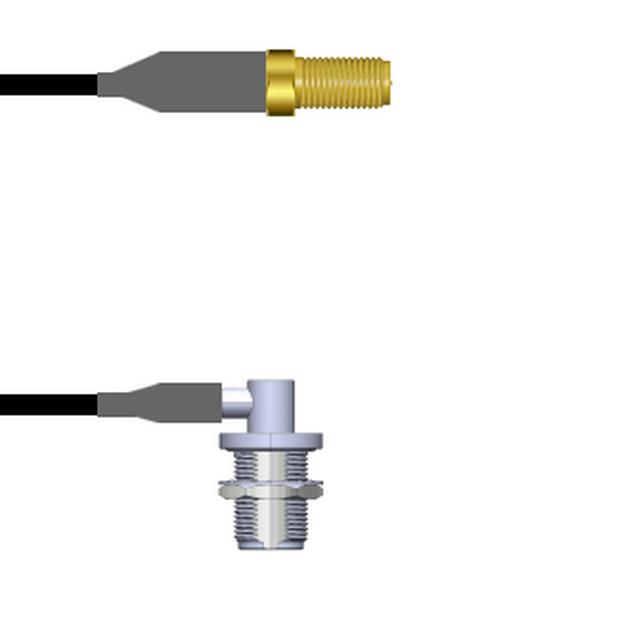

CBL ASSY RPSMA-NTYPE JCK-JCK 7'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JCK-JCK 7'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-7201S0008084I

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Part	Connector Impedance	1st Contact Gender	2nd Contact Gender	2nd Connector	Length	Length	Length	Cable Type	1st Connector Mounting Type	Overall Impedance	2nd Connector Mounting Feature	2nd Connector Mounting Type	Frequency - Max [Max]	Style	Cable Impedance	Color	1st Connector	Features
Amphenol Custom Cable Q-7201S0008084I	50 Ohms	Male	Female	N-Type Jack Right Angle	84 in	2.1 m	7 ft	RG-58	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	1 GHz	RP-SMA to N-Type	50 Ohms	Black	RP-SMA Jack	Shielded
Amphenol Custom Cable Q-7201S00081.5M	50 Ohms	Male	Female	N-Type Jack Right Angle	59.1 in	1.5 m	4.9 ft	RG-58	Free Hanging (In-Line)	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	1 GHz	RP-SMA to N-Type	50 Ohms	Black	RP-SMA Jack	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial RP-SMA to N-Type RG-58 84.0" (2.1m) 7.0'

Technical documentation and resources

No documents available
