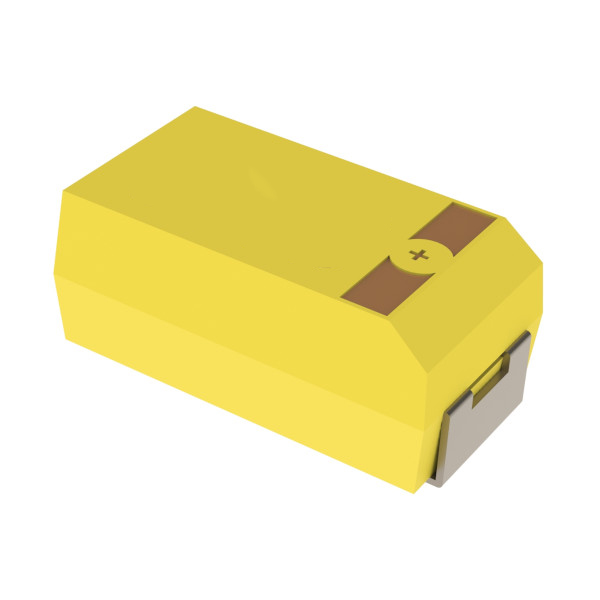

T493D225K050CH6320
ActiveKEMET
CAP TANT SMD HI-REL
Deep-Dive with AI
Search across all available documentation for this part.
T493D225K050CH6320
ActiveKEMET
CAP TANT SMD HI-REL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T493D225K050CH6320 |
|---|---|
| Capacitance | 2.2 µF |
| ESR (Equivalent Series Resistance) | 800 mOhm |
| Failure Rate | C (0.01%) |
| Features | High Reliability |
| Height - Seated (Max) [Max] [z] | 0.122 " |
| Height - Seated (Max) [Max] [z] | 3.1 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Ratings | COTS |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
T493D225K050CH6320
2.2 µF Molded Tantalum Capacitors 50 V 2917 (7343 Metric) 800mOhm @ 100kHz
