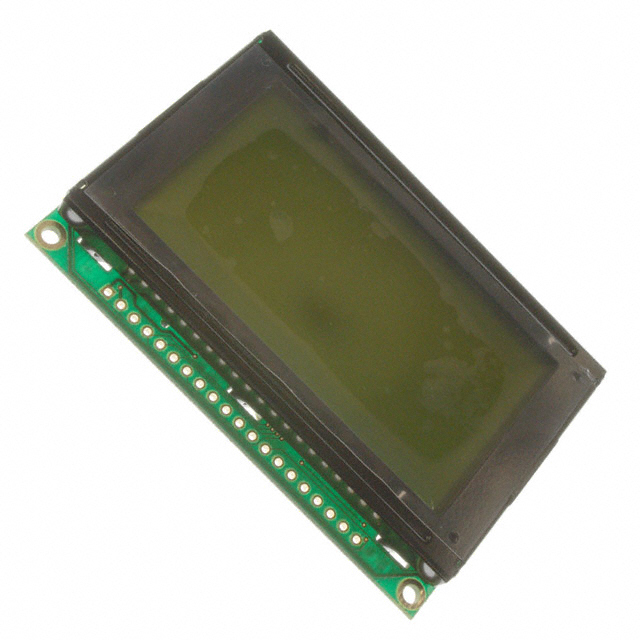

LCM-H12864GSF/H-Y

Active

Lumex Opto/Components Inc.

LCD MOD GRAPHIC 128X64 W/LED

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD GRAPHIC 128X64 W/LED

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD GRAPHIC 128X64 W/LED

Part	Dot Pixels [y]	Dot Pixels [x]	Background Color	Dot Size [z]	Dot Size [y]	Graphics Color	Display Mode	Interface	Viewing Area [x]	Viewing Area [y]	Dot Pitch [y]	Dot Pitch [x]	Display Type	Backlight	Dot Size [custom]	Dot Size [custom]
Lumex Opto/Components Inc. LCM-H12864GSF/H-Y	64	128	Green	0.4 mm	0.4 mm	Gray	Transflective	Parallel, 8-Bit	60 mm	32.5 mm	0.43 mm	0.43 mm	STN - Super-Twisted Nematic
Lumex Opto/Components Inc. LCM-H12864GSF/C	64	128				Gray	Transflective		72 mm	40 mm	0.52 mm	0.52 mm	STN - Super-Twisted Nematic	LED	0.48 mm	0.48 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit 128 x 64

Technical documentation and resources

No documents available
