Description
General part information
TLA-6T211A

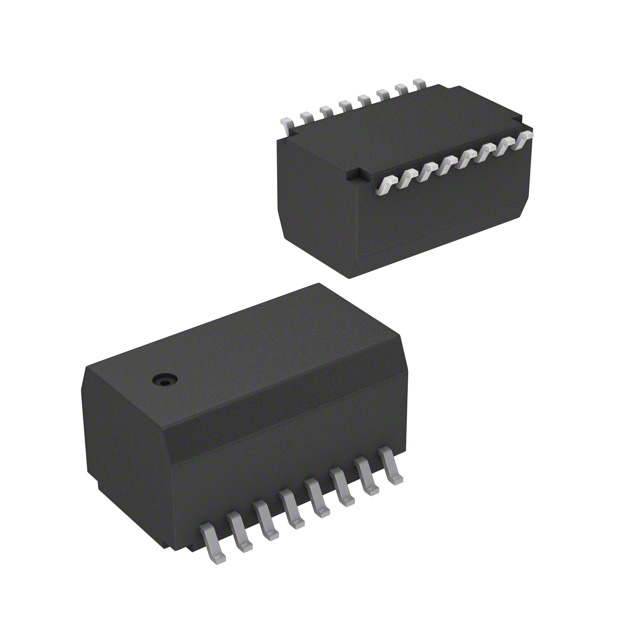

350µH LAN Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TLA-6T211A |
|---|---|
| Height - Seated (Max) | 0.083 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.33 in |
| Transformer Type | LAN |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
