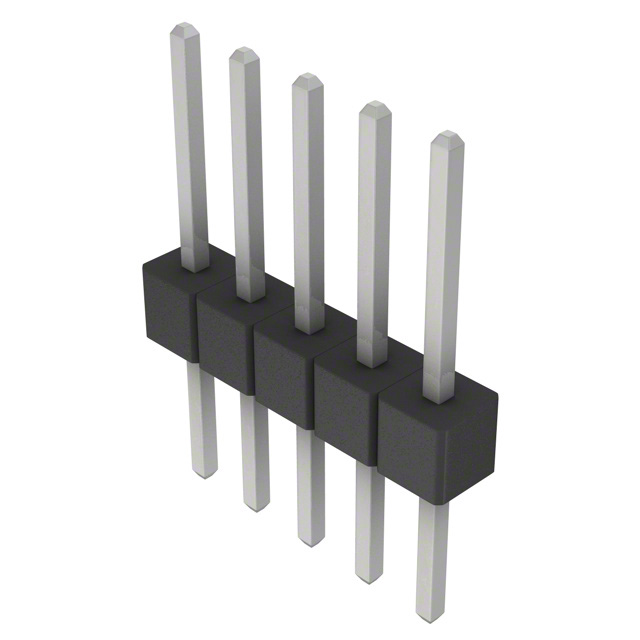

PEC05SFBN

Active

Sullins Connector Solutions

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

PEC05SFBN

Active

Sullins Connector Solutions

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC05SFBN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.21 mm
Overall Contact Length	0.638 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC05 Series

Part	Material Flammability Rating	Insulation Material	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Current Rating (Amps)	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Overall Contact Length
Sullins Connector Solutions PEC05SFBN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.318 "	8.08 mm	Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm	0.22 in	5.58 mm	1	16.21 mm	0.638 in	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All
Sullins Connector Solutions PEC05SAAN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.23 in		Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm			1	11.43 mm	0.45 "	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All	0.12 in	3.05 mm	5.84 mm
Sullins Connector Solutions PEC05DFCN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.318 "	8.08 mm	Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm			2	18.75 mm	0.738 "	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All	0.32 in	8.13 mm		2.54 mm	0.1 in	10
Sullins Connector Solutions PEC05SFDN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.318 "	8.08 mm	Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm			1	21.29 mm	0.838 in	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All	0.42 in	10.67 mm
Sullins Connector Solutions PEC05DAAN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.23 in		Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm			2	11.43 mm	0.45 "	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All	0.12 in	3.05 mm	5.84 mm	2.54 mm	0.1 in	10
Sullins Connector Solutions PEC05DACN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.23 in		Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm			2	0.65 in		Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All	0.32 in	8.13 mm	5.84 mm	2.54 mm	0.1 in	10	16.51 mm
Sullins Connector Solutions PEC05DABN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.23 in		Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm	0.23 in	5.84 mm	2	14.22 mm	0.56 in	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All			5.84 mm	2.54 mm	0.1 in	10
Sullins Connector Solutions PEC05SAFN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.23 in		Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm	0.62 in	15.75 mm	1	24.13 mm	0.95 in	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All			5.84 mm
Sullins Connector Solutions PEC05SFAN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.318 "	8.08 mm	Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm			1	13.67 mm	0.538 "	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All	0.12 in	3.05 mm
Sullins Connector Solutions PEC05SAEN	UL94 V-0	Polybutylene Terephthalate (PBT)	Breakaway Header	0.23 in		Square	2.54 µm	100 µin	Phosphor Bronze	Push-Pull	0.1 in	2.54 mm	0.52 "	13.21 mm	1	21.59 mm	0.85 in	Tin	125 °C	-65 ░C	Solder	Male Pin	Black	0.1 in	2.54 mm	Through Hole	Board to Board Cable	2.54 çm	100 çin	Unshrouded	3 A	All			5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.86
		10	$ 0.66
		100	$ 0.50
		500	$ 0.42
		1000	$ 0.39
		5000	$ 0.34

Description

General part information

PEC05 Series

Connector Header Through Hole 5 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
