6791215342F

Active

DIALIGHT

9MM HG/G PMI-24VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HG/G PMI-24VDC W/O-RING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

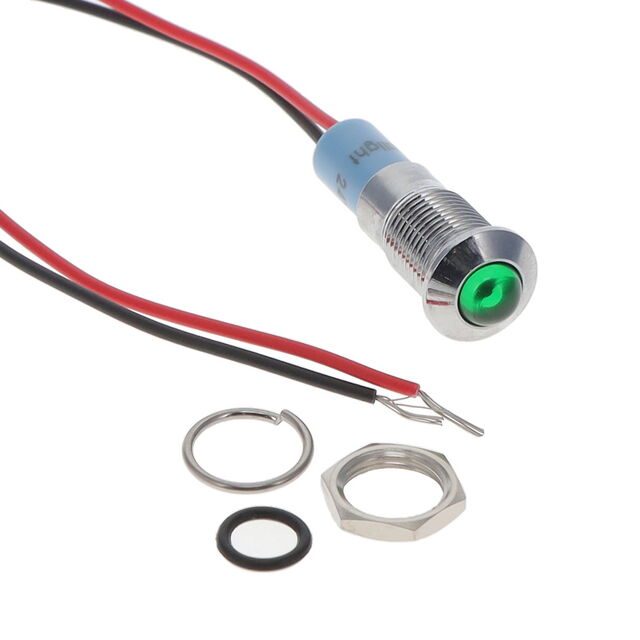

LED Panel Indicator Green 24V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available

Specification	6791215342F	6791215 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Green	Green
Lens Size [diameter]	6 mm	6 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	5870 mcd	5870 - 25000 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	6 - 24 V
Wavelength - Peak	-	525 nm

Part	Panel Cutout Shape	Type	Millicandela Rating	Lamp Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lens Style	Current	Lens Size [diameter]	Ratings	Voltage	Ingress Protection	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Wavelength - Peak	Viewing Angle
DIALIGHT 6791215342F	Round	LED	5870 mcd	Green	0.37 in	9.4 mm	Round with Domed Top	30 mA	6 mm	DC	24 V	IP66, NEMA 4X
DIALIGHT 6791215322F	Round	LED	25000 mcd	Green			Round with Domed Top	30 mA	6 mm	DC	6 V	IP66, NEMA 4X	0.37 in	9.35 mm	525 nm	30 °
