796964-1
ActiveTE Connectivity AMP Connectors

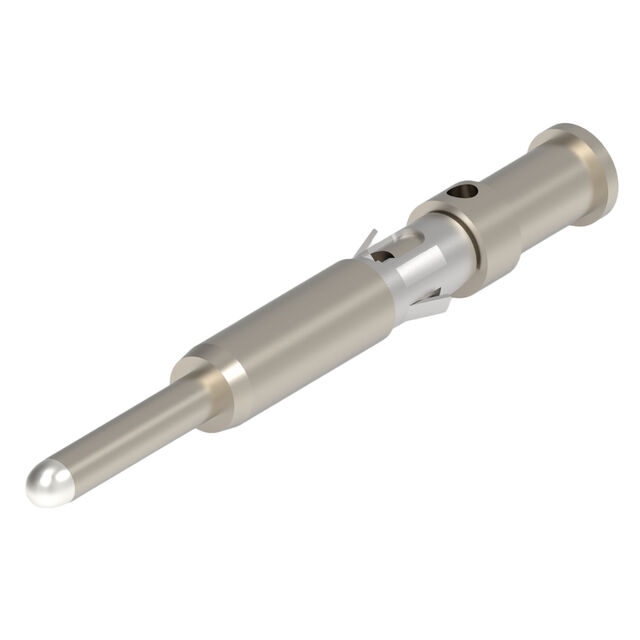

CONN PIN 16-18AWG SILVER CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796964-1
ActiveTE Connectivity AMP Connectors
CONN PIN 16-18AWG SILVER CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796964-1 | 796964 Series |
|---|---|---|
| Contact Finish | Silver | Silver |
| Contact Finish Thickness | 200 Áin | 200 Áin |
| Contact Finish Thickness | 5.08 Ám | 5.08 Ám |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Power, Machined | Power, Machined |
| Wire Gauge [Max] | 18 AWG | 18 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
796964 Series
CONN PIN 16-18AWG SILVER CRIMP
| Part | Contact Termination | Contact Material | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796964-2 | Crimp | Copper Alloy | 16 AWG | 18 AWG | Pin | 200 Áin | 5.08 Ám | Power, Machined | Silver |
TE Connectivity AMP Connectors 796964-1 | Crimp | Copper Alloy | 16 AWG | 18 AWG | Pin | 200 Áin | 5.08 Ám | Power, Machined | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.61 | |
| 10 | $ 18.66 | |||
| 25 | $ 17.35 | |||
| 50 | $ 16.39 | |||
| 100 | $ 16.03 | |||
| 300 | $ 15.91 | |||
| 500 | $ 15.31 | |||
Description
General part information
796964 Series
Pin Contact Silver Crimp 16-18 AWG Power, Machined
