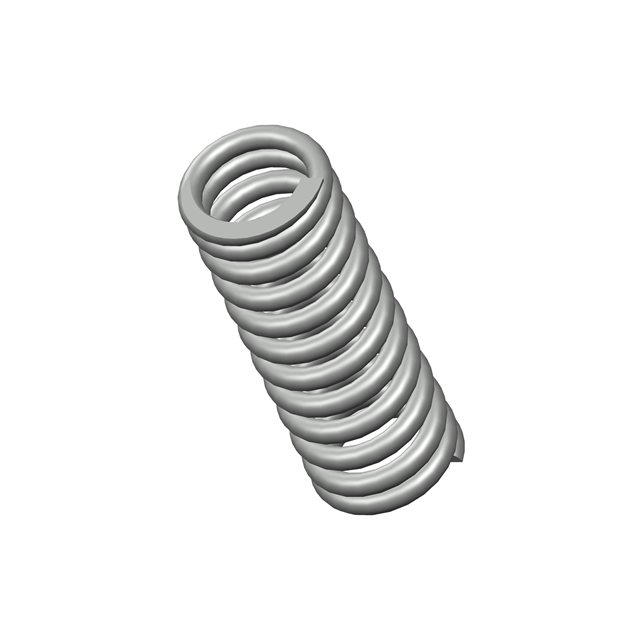

387CS
ActiveCentury Spring Corp
COMP O= .781,L=2.25,W=.120
387CS
ActiveCentury Spring Corp
COMP O= .781,L=2.25,W=.120
Description
General part information
387CS
COMP O= .781,L=2.25,W=.120
Technical Specifications
Parameters and characteristics for this part
| Specification | 387CS |
|---|---|
| Diameter - Inside | 0.541 in |
| Diameter - Outside | 0.781 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 2.25 in |
| Material | Hard Drawn |
| Rate (lbs/in) | 103 lbs/in |
| Type | Compression |
| Wire Diameter | 0.12 in |
