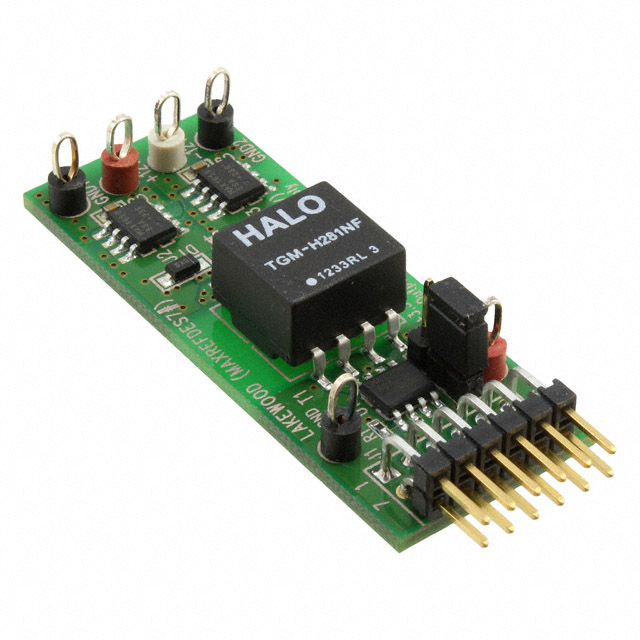

MAXREFDES7#
ActiveAnalog Devices Inc./Maxim Integrated
REFERENCE DESIGN LAKEWOOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXREFDES7#
ActiveAnalog Devices Inc./Maxim Integrated
REFERENCE DESIGN LAKEWOOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAXREFDES7# |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | Transformer Driver |
| Primary Attributes | Pmod™-Compatible |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | MAX1659, MAX256 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 114.32 | |
MAXREFDES7 Series
REFERENCE DESIGN LAKEWOOD
| Part | Primary Attributes | Function | Contents | Type | Utilized IC / Part | Supplied Contents | Embedded |
|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXREFDES7# | Pmod™-Compatible | Transformer Driver | Board(s) | Power Management | MAX1659, MAX256 | Board(s) |
Description
General part information
MAXREFDES7 Series
MAX256, MAX1659 Transformer Driver Power Management Evaluation Board
