TSW-103-07-T-S

TSW-103-07-T-S

Active
Samtec Inc.

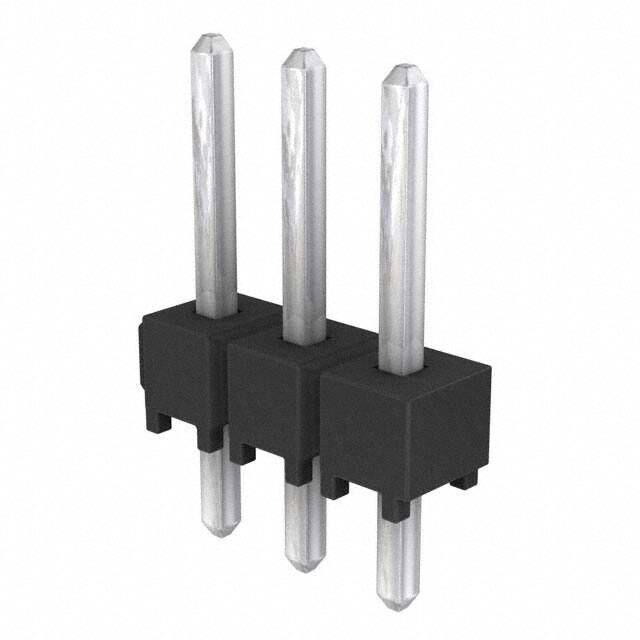

PIN HEADER, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 3 CONTACTS, THROUGH HOLE, TSW SERIES

Find alt
TSW-103-07-T-S

TSW-103-07-T-S

Active
Samtec Inc.

PIN HEADER, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 3 CONTACTS, THROUGH HOLE, TSW SERIES

Find alt

Description

General part information

TSW-103 Series

The TSW series from Samtec are standard terminal strip headers. These are unshrouded through hole headers with 0.025" (0.635mm) square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors. TSW series connectors are available with industry's largest variety of standard pin counts, terminal lengths and are used where signal integrity and reliability is of major concern.

Technical Specifications

Parameters and characteristics for this part

SpecificationTSW-103-07-T-S
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Mating0.23 in
Contact Length - Post0.1 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.1 in
Insulation MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions3
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Overall Contact Length0.43 in
Pitch - Mating0.1 in
ShroudingUnshrouded
StyleBoard, Board or Cable
TerminationSolder
