2-1104002-3
ActiveTE Connectivity AMP Connectors

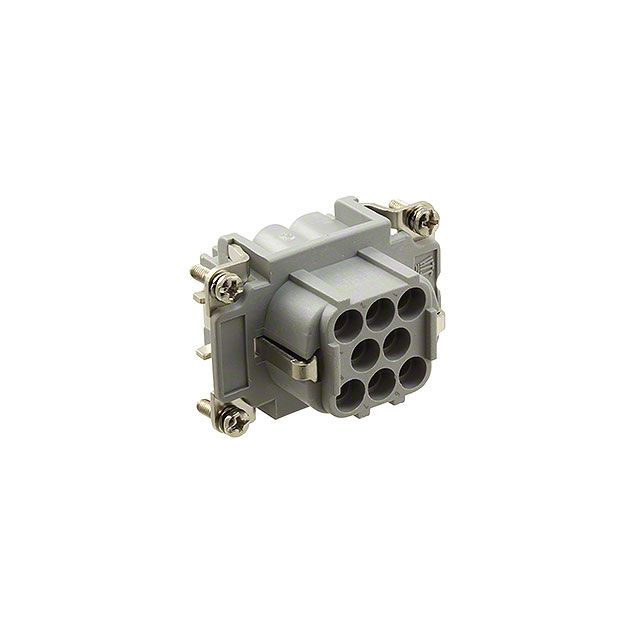

INSERT FEMALE 8POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1104002-3
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 8POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-1104002-3 | 1104002 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Type | Insert without Contacts | Insert without Contacts |
| Contact Type | HVT | HVT |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Female |
| Housing Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Number of Positions | 8+Ground | 8+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 3 | 3 |
| Termination Style | Crimp | Crimp |
| Voltage Rating | 400 V | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 270 | $ 21.24 | |
1104002 Series
INSERT FEMALE 8POS+1GND CRIMP
| Part | Termination Style | Size | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Housing Material | Voltage Rating | Contact Type | Gender | Color | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1104002-3 | Crimp | 3 | 125 °C | -40 °C | 8+Ground | Polybutylene Terephthalate (PBT) | 400 V | HVT | Female | Gray | 16 A | Insert without Contacts |
TE Connectivity AMP Connectors 1104002-1 | Crimp | 3 | 8+Ground | Polybutylene Terephthalate (PBT) | Female | Gray | Insert without Contacts |
Description
General part information
1104002 Series
Female Insert without Contacts Gray 8+Ground Position Crimp
