Description
General part information

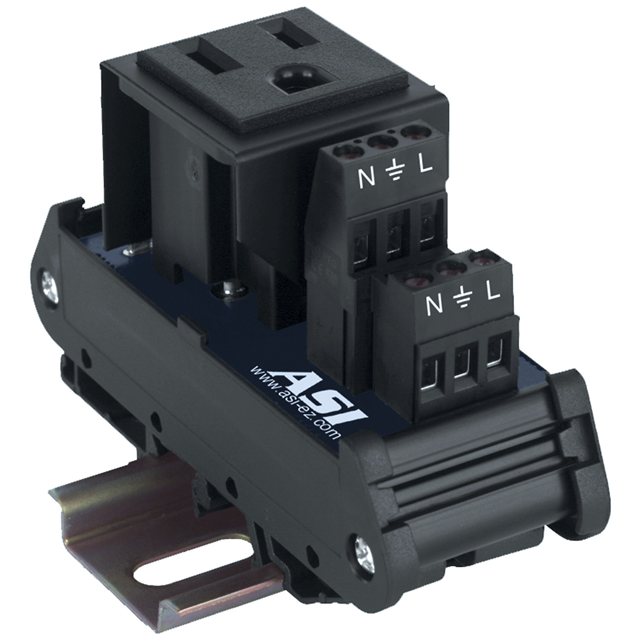

IMACP01
Power Connector Receptacle, Female Sockets - Module NEMA 5-15R DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | IMACP01 |
|---|---|
| Approval Agency | cURus |
| Connector Style | NEMA 5-15R |
| Connector Type | Female Sockets - Module, Receptive |
| Current Rating | 15 A |
| Mounting Type | DIN Rail |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
