ES215P-Z
ObsoleteNidec Components Corporation
SWITCH SLIDE DPDT 15A 125V
ES215P-Z
ObsoleteNidec Components Corporation
SWITCH SLIDE DPDT 15A 125V
Description
General part information
ES215P-Z

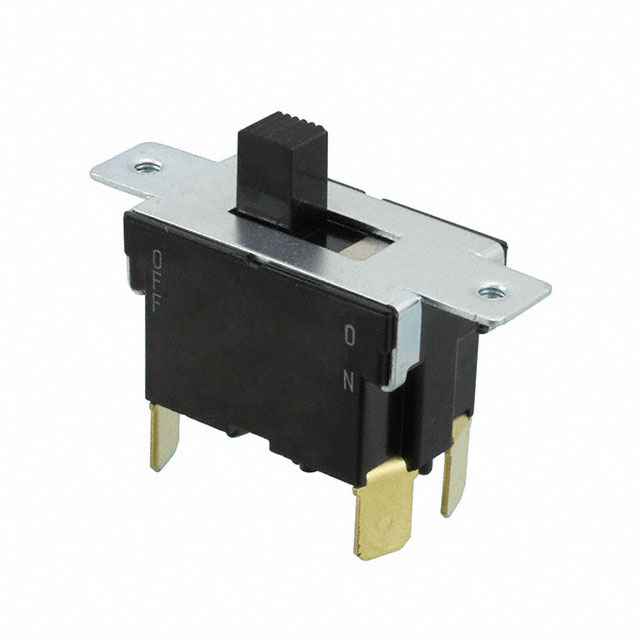

Slide Switch DPDT Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ES215P-Z |
|---|---|
| Actuator Length | 9 mm |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating | 15 A |
| Electrical Life (Cycles) | 20000 |
| Mounting Type | Panel Mount |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | On-Off-On |
| Switch Travel | 8 mm |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
