Description Specifications Series Pricing CAD Documents

Description

General part information

5700100 Series

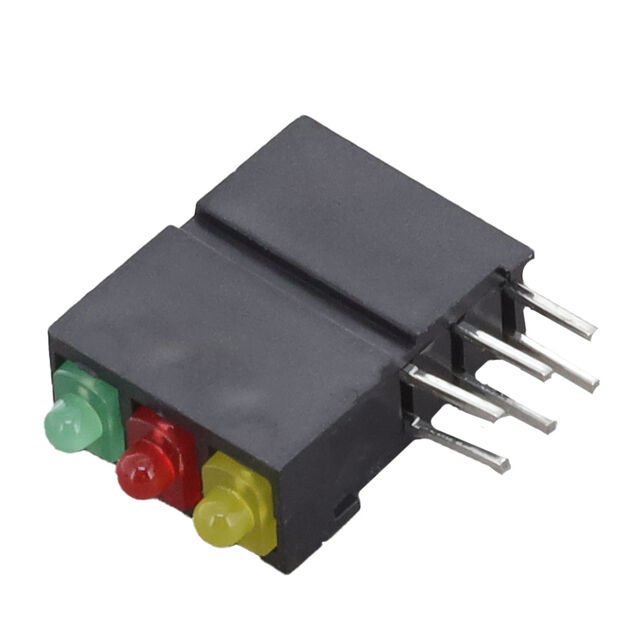

LED Circuit Board Indicator LED Circuit Board Indicator 3 High Green (x 1), Red (x 1), Yellow (x 1) Diffused 2.2V Green, 2V Red, 2.1V Yellow 25mA Green, 30mA Red, 30mA Yellow Round with Domed Top 2.00mm Dia Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification	5700100213F

Color	Yellow, Red, Green
Color Count	1 count, 1 count, 1 count
Configuration	High
Configuration Count	3
Current (Green)	25 mA
Current (Red)	30 mA
Current (Yellow)	30 mA
Current Colors	Red, Green, Yellow
Lens Diameter	2 mm
Lens Style	Round, Domed Top
Lens Type	Diffused
Millicandela Rating (Green)	10 mcd
Millicandela Rating (Red)	15 mcd
Millicandela Rating (Yellow)	8 mcd
Millicandela Rating Colors	Red, Yellow, Green
Mounting Type	Through Hole, Right Angle
Viewing Angle	70 °
Voltage Rating - Color	Red, Yellow, Green
Voltage Rating (Green)	2.2 V
Voltage Rating (Red)	2 V
Voltage Rating (Yellow)	2.1 V
Wavelength - Peak (1)	565 nm
Wavelength - Peak (2)	627 nm
Wavelength - Peak (3)	590 nm

5700100 Series

Part	Color	Color Count	Wavelength - Peak (2)	Wavelength - Peak (1)	Viewing Angle	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Green)	Lens Diameter	Lens Style	Voltage Rating (Red)	Voltage Rating - Color	Voltage Rating (Green)	Configuration Count	Configuration	Mounting Type	Lens Type	Current Colors	Current (Green)	Current (Red)	Millicandela Rating (Yellow)	Current (Orange)	Current (Yellow)	Voltage Rating (Orange)	Voltage Rating (Yellow)	Wavelength - Peak (3)	Current	Voltage Rating	Wavelength - Peak	Millicandela Rating
DIALIGHT 5700100012F	Blank Green Red	1 count 1 count 1 count	627 nm	565 nm	70 °	Green Red	15 mcd	10 mcd	2 mm	Domed Top Round	2 V	Green Red	2.2 V	3	High	Right Angle Through Hole	Diffused Tinted	Green Red	25 mA	30 mA
DIALIGHT 5700100723F	Green Orange Yellow	1 count 1 count 1 count	610 nm	565 nm	70 °	Green Orange Yellow		10 mcd	2 mm	Domed Top Round		Green Orange Yellow	2.2 V	3	High	Right Angle Through Hole	Diffused Tinted	Green Orange Yellow	25 mA		8 mcd	25 mA	30 mA	2.05 V	2.1 V	590 nm
DIALIGHT 5700100221F	Green Red	1 count 2 count	627 nm	565 nm	70 °	Green Red	15 mcd	10 mcd	2 mm	Domed Top Round	2 V	Green Red	2.2 V	3	High	Right Angle Through Hole	Diffused Tinted	Green Red	25 mA	30 mA
DIALIGHT 5700100202F	Blank Green	1 count 2 count			70 °				2 mm	Domed Top Round				3	High	Right Angle Through Hole	Diffused Tinted										25 mA	2.2 V	565 nm	10 mcd
DIALIGHT 5700100220F	Blank Green	1 count 2 count			70 °				2 mm	Domed Top Round				3	High	Right Angle Through Hole	Diffused Tinted										25 mA	2.2 V	565 nm	10 mcd
DIALIGHT 5700100210F	Blank Green Red	1 count 1 count 1 count	627 nm	565 nm	70 °	Green Red	15 mcd	10 mcd	2 mm	Domed Top Round	2 V	Green Red	2.2 V	3	High	Right Angle Through Hole	Diffused Tinted	Green Red	25 mA	30 mA
DIALIGHT 5700100331F	Red Yellow	1 count 2 count	590 nm	627 nm	70 °	Red Yellow	15 mcd		2 mm	Domed Top Round	2 V	Red Yellow		3	High	Right Angle Through Hole	Diffused	Red Yellow		30 mA	8 mcd		30 mA		2.1 V
DIALIGHT 5700100110F	Blank Red	1 count 2 count			70 °				2 mm	Domed Top Round				3	High	Right Angle Through Hole	Diffused Tinted										30 mA	2 V	627 nm	15 mcd
DIALIGHT 5700100033F	Blank Yellow	1 count 2 count			70 °				2 mm	Domed Top Round				3	High	Right Angle Through Hole	Diffused Tinted										30 mA	2.1 V	590 nm	8 mcd
DIALIGHT 5700100222F	Green	3 count			38 °									3	High	Right Angle Through Hole	Diffused Tinted										20 mA	2.1 V	565 nm	8.7 mcd
