ASL530P
ActiveAC Connectors

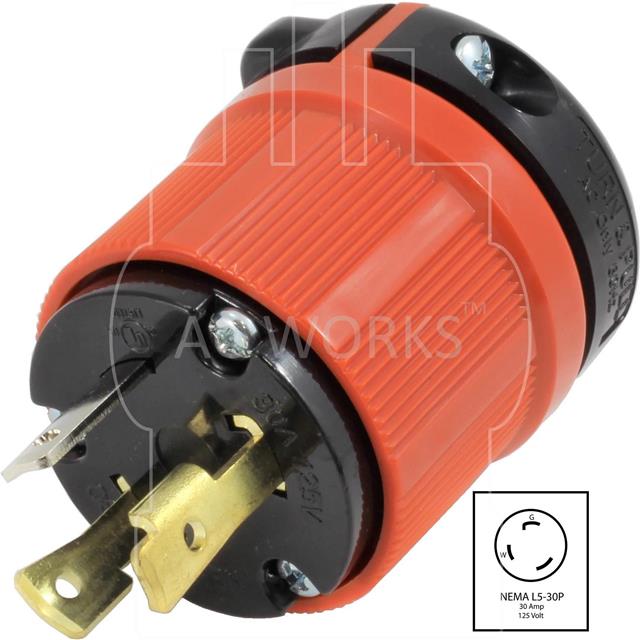

NEMA L5-30 30A 125V MALE PLUG
ASL530P
ActiveAC Connectors
NEMA L5-30 30A 125V MALE PLUG
Description
General part information
ASL530P
Power Connector Plug, Male Blades NEMA L5-30P
Technical Specifications
Parameters and characteristics for this part
| Specification | ASL530P |
|---|---|
| Approval Agency | cULus |
| Connector Style | NEMA L5-30P |
| Connector Type | Plug, Male Blades |
| Current Rating | 30 A |
| Features | Chemical Resistant, Weather Resistant, Impact Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
