BZW50-100BRL - R-6

BZW50-100BRL

Active
STMicroelectronics

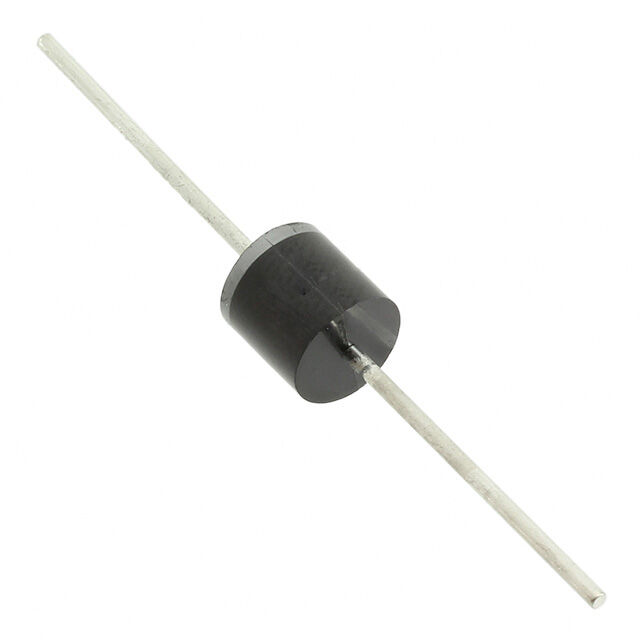

5000 W, 100 V TVS IN DO-15

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTN1517AN574+14
BZW50-100BRL - R-6

BZW50-100BRL

Active
STMicroelectronics

5000 W, 100 V TVS IN DO-15

Deep-Dive with AI

DocumentsTN1517AN574+14

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationBZW50-100BRLBZW50-100B Series
--
ApplicationsGeneral PurposeGeneral Purpose
Bidirectional Channels [custom]11
Capacitance @ Frequency2300 pF1150 - 2300 pF
Current - Peak Pulse (10/1000µs)28 A28 - 263 A
Mounting TypeThrough HoleThrough Hole
Operating Temperature175 °C175 °C
Package / CaseR-6, AxialR-6, Axial
Power - Peak Pulse5000 W5000 W
Power - Peak Pulse5 kW5 kW
Power Line ProtectionFalseFalse
Supplier Device PackageR-6R-6
TypeZenerZener
Voltage - Breakdown (Min) [Min]111 V111 V
Voltage - Clamping (Max) @ Ipp179 V179 V
Voltage - Clamping (Max) @ Ipp-228 V
Voltage - Reverse Standoff (Typ)-100 V
Voltage - Reverse Standoff (Typ) [Max]100 V100 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTape & Reel (TR) 1000$ 1.22
2000$ 1.15

BZW50-100B Series

5000 W, 100 V TVS in DO-15

PartCurrent - Peak Pulse (10/1000µs)Supplier Device PackageMounting TypeVoltage - Breakdown (Min) [Min]Capacitance @ FrequencyTypePackage / CaseOperating TemperatureVoltage - Reverse Standoff (Typ) [Max]ApplicationsBidirectional Channels [custom]Power - Peak PulsePower - Peak PulseVoltage - Clamping (Max) @ IppPower Line ProtectionVoltage - Reverse Standoff (Typ)Voltage - Clamping (Max) @ Ipp [Max]
STMicroelectronics
BZW50-100BRL
28 A
R-6
Through Hole
111 V
2300 pF
Zener
R-6, Axial
175 °C
100 V
General Purpose
1
5000 W
5 kW
179 V
STMicroelectronics
BZW50-100B
STMicroelectronics
BZW50-100BRL
STMicroelectronics
BZW50-100B
263 A
R-6
Through Hole
111 V
1150 pF
Zener
R-6, Axial
General Purpose
1
5000 W
5 kW
100 V
228 V
STMicroelectronics
BZW50-100B

Description

General part information

BZW50-100B Series

The BZW50 TVS series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 5000 W 10/1000 μs.

This planar technology makes it compatible with high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
