1415172

Active

Phoenix Contact

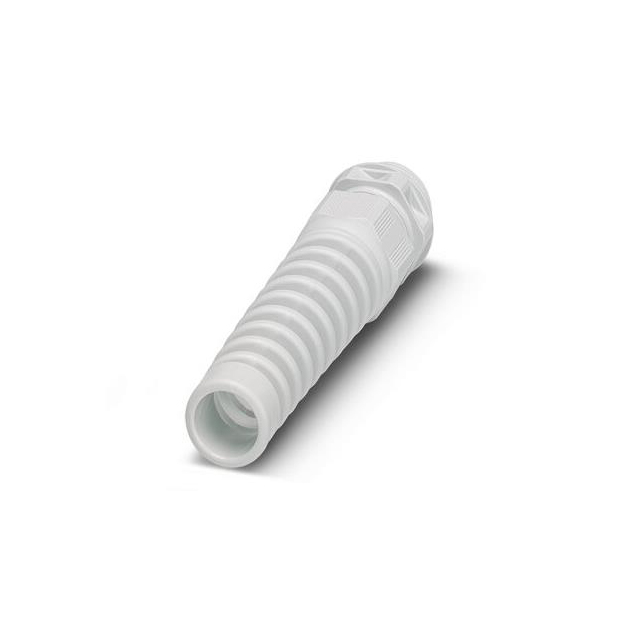

CABLE GLAND 4.5-10MM M16

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4.5-10MM M16

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415172	G-INB-M16 Series

Color	Light Gray	Light Gray, Black
Includes	Strain Relief, O-Ring, Seal	Strain Relief, O-Ring, Seal
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm	10 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.177 in	0.177 in
Outside Cable Diameter (Min) [Min] [diameter]	4.5 mm	4.5 mm
Thread Length	0.354 in	0.354 in
Thread Length	9 mm	9 mm
Thread Size	M16	M16
Type	Cable Gland	Cable Gland

CABLE GLAND 4.5-10MM M16

Part	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Length	Thread Length	Thread Size
Phoenix Contact 1415172	Polyamide (PA), Nylon	0.177 in	4.5 mm	Light Gray	Cable Gland	0.394 "	10 mm	O-Ring, Seal, Strain Relief	100 °C	-40 °C	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	0.354 in	9 mm	M16
Phoenix Contact 1415178	Polyamide (PA), Nylon	0.177 in	4.5 mm	Black	Cable Gland	0.394 "	10 mm	O-Ring, Seal, Strain Relief	100 °C	-40 °C	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	0.354 in	9 mm	M16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 1.40

General part information

Cable Gland Polyamide (PA), Nylon M16 Light Gray

Technical documentation and resources
