86401-8

Active

TE Connectivity AMP Connectors

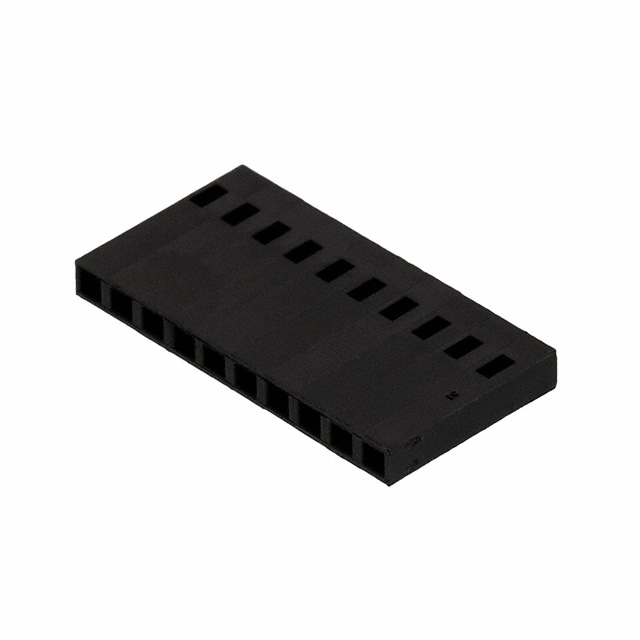

CONN RCPT HSG 10POS 3.18MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 10POS 3.18MM

Technical Specifications

Parameters and characteristics for this part

Specification	86401-8

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm

CONN RCPT HSG 10POS 3.18MM

Part	Pitch [x]	Pitch [x]	Contact Termination	Number of Positions	Mounting Type	Contact Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Color	Insulation Material	Connector Type
TE Connectivity AMP Connectors 86401-8	0.125 in	3.18 mm	Crimp	10	Free Hanging (In-Line)	Female Socket	Contacts Not Included	-65 ░C	105 ░C	1	Black	Glass Filled, Nylon, Polyamide (PA)	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Receptacle Black 0.125" (3.18mm)
