228ADS2AAWFCMBA

Active

CTS Electrocomponents

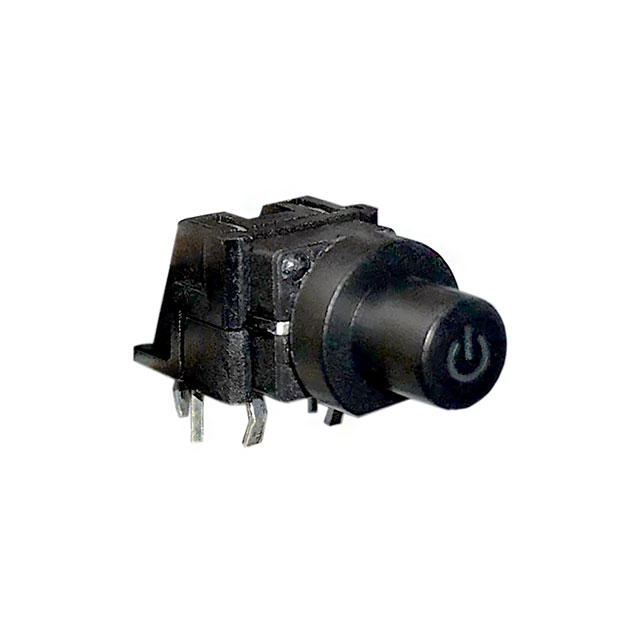

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

228ADS2AAWFCMBA

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.69
		10	$ 1.38
		25	$ 1.27
		80	$ 1.14
		230	$ 1.03

Description

General part information

228ADS2 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	228ADS2AAWFCMBA	228ADS2 Series

Actuator Length, Right Angle [x]	11 mm	11 mm
Actuator Orientation	Side Actuated	Side Actuated
Actuator Type	Round Button	Round Button, Plunger for Cap
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	LED, Amber/White	Amber/Red, LED, Green/Red, Amber, Blue, Green, Red, Yellow, White, Amber/White, Blue/Red
Illumination Voltage (Nominal)	-	1.7 - 3 VDC
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Outline [x]	8.3 mm	7.2 - 8.3 mm
Outline [y]	9.6 mm	5.4 - 9.6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

228ADS2 Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Length, Right Angle [x]	Contact Rating @ Voltage	Termination Style	Actuator Type	Outline [y]	Outline [x]	Illumination	Actuator Orientation	Mounting Type	Mechanical Life	Switch Travel	Illumination Type, Color	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)
CTS Electrocomponents 228ADS2ARAFCWC	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Amber/Red, LED	Off-Mom	SPST-NO	70 °C	-25 °C
CTS Electrocomponents 228ADS2ARGFCMSC	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Green/Red, LED	Off-Mom	SPST-NO	70 °C	-25 °C	1.7 VDC, 1.9 VDC
CTS Electrocomponents 228ADS2ARAFCAB	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Amber/Red, LED	Off-Mom	SPST-NO	70 °C	-25 °C
CTS Electrocomponents 228ADS2AAFCN	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Amber, LED	Off-Mom	SPST-NO	70 °C	-25 °C
CTS Electrocomponents 228ADS2ABFCMBD	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Blue, LED	Off-Mom	SPST-NO	70 °C	-25 °C	3 VDC
CTS Electrocomponents 228ADS2AGFCMSB	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Green, LED	Off-Mom	SPST-NO	70 °C	-25 °C	1.9 VDC
CTS Electrocomponents 228ADS2ARGFCWA	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Green/Red, LED	Off-Mom	SPST-NO	70 °C	-25 °C	1.7 VDC, 1.9 VDC
CTS Electrocomponents 228ADS2ARFCMSE	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	LED, Red	Off-Mom	SPST-NO	70 °C	-25 °C	1.7 VDC
CTS Electrocomponents 228ADS2ARGFCMSA	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Green/Red, LED	Off-Mom	SPST-NO	70 °C	-25 °C	1.7 VDC, 1.9 VDC
CTS Electrocomponents 228ADS2ARGFCMSB	11 mm	0.05 A, 12 VDC	PC Pin	Round Button	9.6 mm	8.3 mm	Illuminated	Side Actuated	Through Hole, Right Angle	100000 Cycles	0.25 mm	Green/Red, LED	Off-Mom	SPST-NO	70 °C	-25 °C	1.7 VDC, 1.9 VDC
