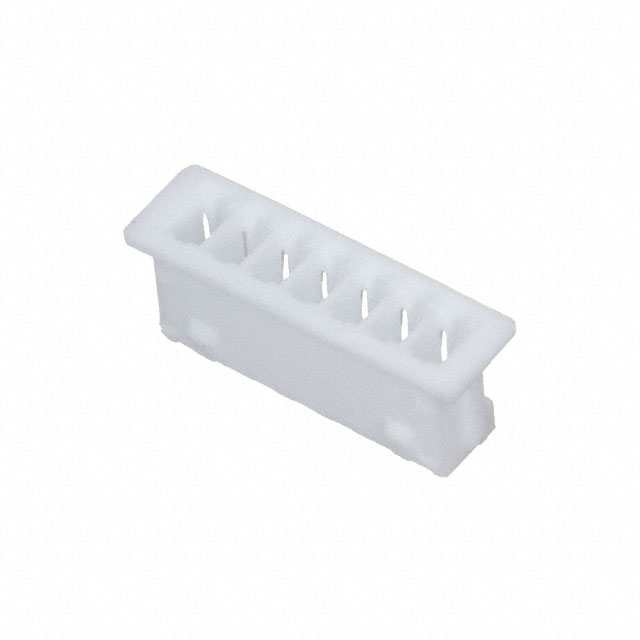

125CH-B-07
ActiveAdam Tech
CONN RCPT HSG 7POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
125CH-B-07
ActiveAdam Tech
CONN RCPT HSG 7POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 125CH-B-07 | 125CH-B Series |
|---|---|---|
| Color | White | White |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Friction Lock | Friction Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 7 | 2 - 9 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.049 in | 0.049 in |
| Pitch [x] | 1.25 mm | 1.25 mm |
125CH-B Series
CONN RCPT HSG 7POS 1.25MM
| Part | Mounting Type | Connector Type | Number of Rows | Contact Termination | Fastening Type | Pitch [x] | Pitch [x] | Insulation Material | Contact Type | Color | Note | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech 125CH-B-07 | Free Hanging (In-Line) | Receptacle | 1 | Crimp | Friction Lock | 0.049 in | 1.25 mm | Polyamide (PA66), Nylon 6/6 | Female Socket | White | Contacts Not Included | 7 | 85 °C | -40 °C |
Adam Tech 125CH-B-02 | Free Hanging (In-Line) | Receptacle | 1 | Crimp | Friction Lock | 0.049 in | 1.25 mm | Polyamide (PA66), Nylon 6/6 | Female Socket | White | Contacts Not Included | 2 | 85 °C | -40 °C |
Adam Tech 125CH-B-06 | Free Hanging (In-Line) | Receptacle | 1 | Crimp | Friction Lock | 0.049 in | 1.25 mm | Polyamide (PA66), Nylon 6/6 | Female Socket | White | Contacts Not Included | 6 | 85 °C | -40 °C |
Adam Tech 125CH-B-09 | Free Hanging (In-Line) | Receptacle | 1 | Crimp | Friction Lock | 0.049 in | 1.25 mm | Polyamide (PA66), Nylon 6/6 | Female Socket | White | Contacts Not Included | 9 | 85 °C | -40 °C |
Adam Tech 125CH-B-04 | Free Hanging (In-Line) | Receptacle | 1 | Crimp | Friction Lock | 0.049 in | 1.25 mm | Polyamide (PA66), Nylon 6/6 | Female Socket | White | Contacts Not Included | 4 | 85 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.12 | |
| 10 | $ 0.09 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2500 | $ 0.05 | |||
Description
General part information
125CH-B Series
7 Rectangular Connectors - Housings Receptacle White 0.049" (1.25mm)
