4181
ActiveKeystone Electronics

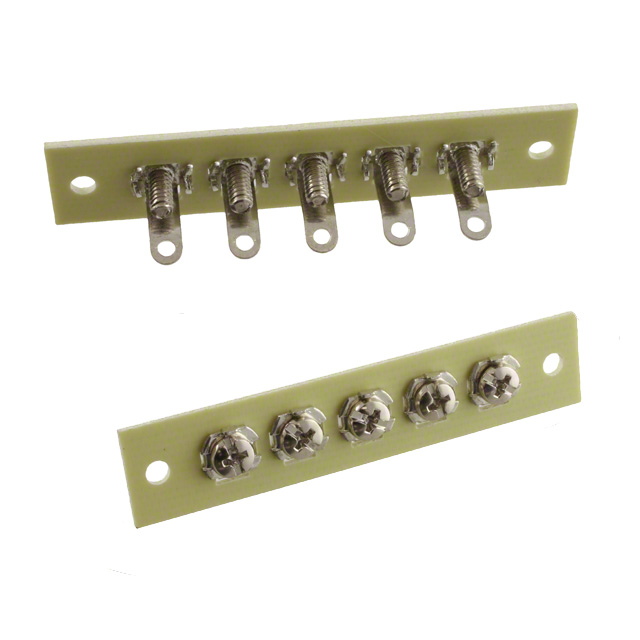

BINDPOST STRIP 5POS 0.437" SCREW
4181
ActiveKeystone Electronics
BINDPOST STRIP 5POS 0.437" SCREW
Description
General part information
4181
5 Position Binding Post Strip 0.437" (11.10mm) Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 4181 |
|---|---|
| Board Height | 0.062 in |
| Board Length | 3 in |
| Board Width | 0.625 in |
| Contact Finish | Tin |
| Contact Material | Steel |
| Features | Standard Strip |
| Material - Board | Glass Epoxy |
| Mounting Hole Diameter | 0.143 in |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Pitch | 0.437 in |
| Terminal Type | Screw Terminal |
| Type | Binding Post Strip |
