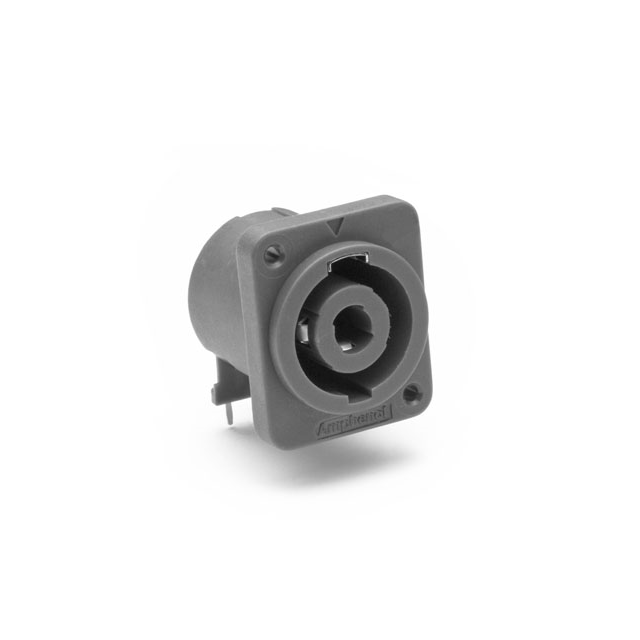

SP-4-MDHT-8
ActiveAMPHENOL AUDIO
CONN CIRC RCPT 4P SILVER SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
SP-4-MDHT-8
ActiveAMPHENOL AUDIO
CONN CIRC RCPT 4P SILVER SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-4-MDHT-8 |
|---|---|
| Applications | Audio |
| Color | Gray |
| Connector Type | Receptacle, Non-Gendered |
| Contact Finish - Mating | Silver |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 30 A |
| Fastening Type | Latch Holder |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Insert Material | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Flange |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shielding | Unshielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 3.25 | |
Description
General part information
SP-4-MDHT-8
4 Position Circular Connector Receptacle, Non-Gendered Solder
