61-6451.4247

Active

EAO

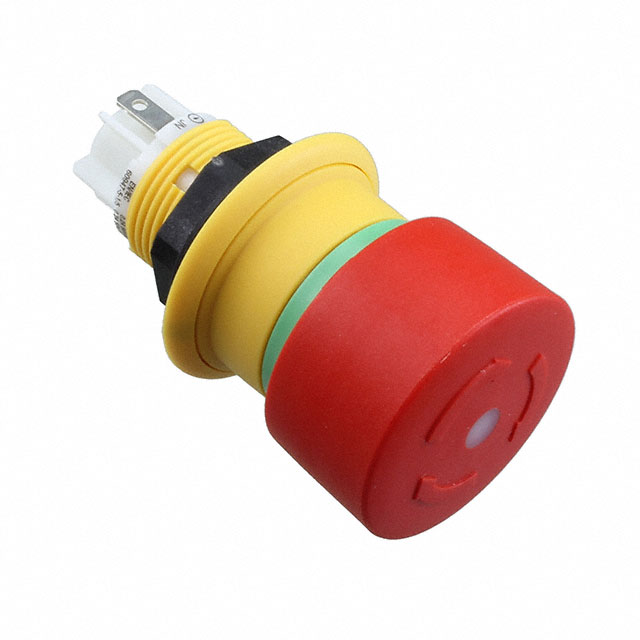

SWITCH E-STOP TWIST RESET

Search across all available documentation for this part.

Active

EAO

SWITCH E-STOP TWIST RESET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	61-6451.4247	61-6451 Series

Circuit	SPST-NC	SPST-NC, DPST-NO/NC, DPST-NC
Ingress Protection	IP69K, IP67	IP69K, IP67
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Reset Operation	Twist	Twist
Switch Function	On-Off	On-Off, Off-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm

SWITCH E-STOP TWIST RESET

Part	Switch Function	Termination Style	Termination Style	Termination Style	Reset Operation	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Panel Cutout Dimensions [diameter]
EAO 61-6451.4247	On-Off	0.11 in	Quick Connect, Solder	2.8 mm	Twist	Panel Mount, Front	SPST-NC	55 °C	-25 °C	IP67, IP69K	16 mm
EAO 61-6451.4277	Off-On, On-Off	0.11 in	Quick Connect, Solder	2.8 mm	Twist	Panel Mount, Front	DPST-NO/NC	55 °C	-25 °C	IP67, IP69K	16 mm
EAO 61-6451.4257	On-Off	0.11 in	Quick Connect, Solder	2.8 mm	Twist	Panel Mount, Front	DPST-NC	55 °C	-25 °C	IP67, IP69K	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH E-STOP TWIST RESET

Technical documentation and resources
