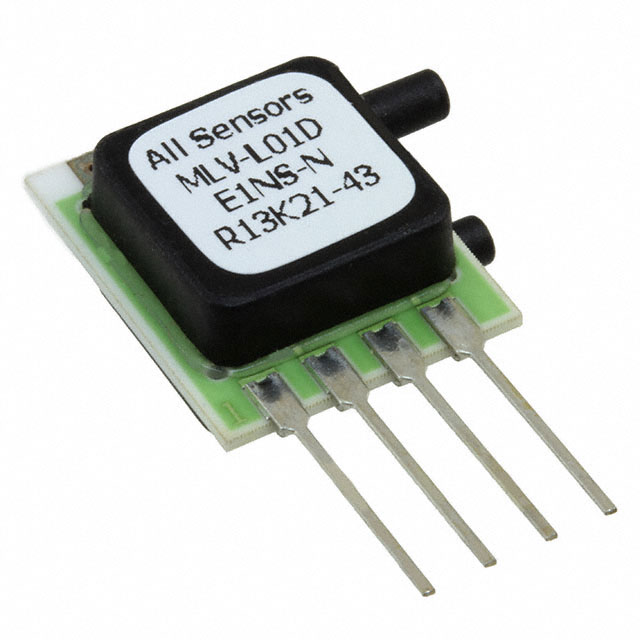

MLV-L10D-E1NS-N

Active

Amphenol All Sensors Corporation

SENSOR 0.36PSID 0.08" .02V 4SIP

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.36PSID 0.08" .02V 4SIP

Technical Specifications

Parameters and characteristics for this part

SENSOR 0.36PSID 0.08" .02V 4SIP

Part	Package / Case	Supplier Device Package	Mounting Type	Accuracy	Features	Termination Style	Voltage - Supply	Operating Temperature [Min]	Operating Temperature [Max]	Pressure Type	Applications	Output Type	Maximum Pressure	Maximum Pressure	Port Size	Port Size	Port Size	Output	Output [Max]	Output [Min]	Port Style	Operating Pressure	Operating Pressure
Amphenol All Sensors Corporation MLV-L10D-E1NS-N	4-SIP, Dual Ports, Same Side	4-SIP	Through Hole	0.3 %	Temperature Compensated	PC Pin	12 VDC	-25 °C	85 °C	Differential	Board Mount	Wheatstone Bridge	7.23 PSI	49.83 kPa	Male, Tube, Dual	0.08 "	2.04 mm	(5V)	20 mV	0 mV	Barbless	2.49 kPa	0.36 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 57.32

General part information

Pressure Sensor ±0.36PSI (±2.49kPa) Differential Male - 0.08" (2.04mm) Tube, Dual 0 mV ~ 20 mV (5V) 4-SIP, Dual Ports, Same Side
