3420-D
ActiveBRADY

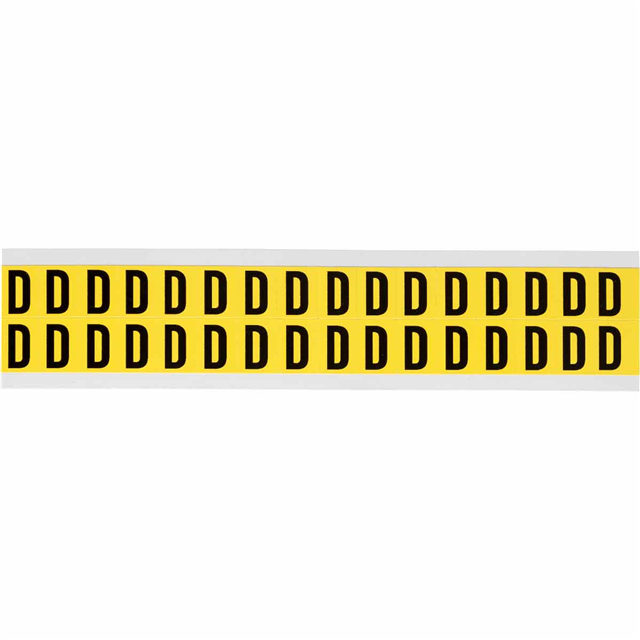

B498 N&L BLK/YEL 3420-D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3420-D
ActiveBRADY
B498 N&L BLK/YEL 3420-D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3420-D | 3420 Series |
|---|---|---|
| Application Specifics | Alpha/Numeric | Alpha/Numeric, Directionality, Notice |
| Applications | General | General |
| Arrangement | Text Only | Text Only, Symbol and Text |
| Color - Background | Yellow | Yellow |
| Color - Legend | Black | Black |
| Features | Corrosion Resistant, Weather Resistant, Chemical Resistant, Humidity Resistant, Abrasion Resistant, UV Resistant | Corrosion Resistant, Weather Resistant, Chemical Resistant, Humidity Resistant, Abrasion Resistant, UV Resistant |
| Language | English | English |
| Legend (Symbol Only) | False | False |
| Legend (Symbol Only) | - | Directional Arrow |
| Legend (Text) | D | X, M, Q, 3, S, P, G, 0 to 9, D, C, Arrow Symbol, A to Z, Z, 7, O, F, L, N, 1, T, B, U, K, A, W, E, R, J, H, I, V |
| Legend (Text) | - | 0 - 9 |
| Legend (Text) | - | True |
| Length | 19.05 mm | 19 - 19.05 mm |
| Length | 0.75 in | 0.748 - 0.75 in |
| Material - Body | Vinyl Cloth | Vinyl Cloth |
| Mounting Type | Adhesive | Adhesive |
| Print Type | Pre-Printed | Pre-Printed |
| Ratings | CSA, UL Rated | CSA, UL Rated |
| Shape | Rectangle | Rectangle |
| Width | - | 0.551 in |
| Width | - | 14 mm |
| Width [y] | 14.3 mm | 14.3 mm |
| Width [y] | 0.563 in | 0.563 in |
3420 Series
B498 N&L BLK/YEL 3420-X
| Part | Color - Legend | Shape | Language | Application Specifics | Mounting Type | Material - Body | Legend (Symbol Only) | Length | Length | Applications | Ratings | Features | Print Type | Width [y] | Width [y] | Arrangement | Legend (Text) | Color - Background | Width | Width | Legend (Text) | Legend (Symbol Only) | Legend (Text) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 3420-X | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | X | Yellow | ||||||
BRADY 3420-M | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | M | Yellow | ||||||
BRADY 3420-Q | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | Q | Yellow | ||||||
BRADY 3420-5 | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | 3 | Yellow | |||||||
BRADY 3420-S | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | S | Yellow | ||||||
BRADY 3420-P | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | P | Yellow | ||||||
BRADY 3420-G | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | G | Yellow | ||||||
BRADY 3420-# KIT | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19 mm | 0.748 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant | Pre-Printed | Text Only | 0 to 9 | Yellow | 0.551 in | 14 mm | ||||||
BRADY 3420-0 | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | Yellow | 0 | ||||||
BRADY 3420-D | Black | Rectangle | English | Alpha/Numeric | Adhesive | Vinyl Cloth | 19.05 mm | 0.75 in | General | CSA, UL Rated | Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant | Pre-Printed | 14.3 mm | 0.563 in | Text Only | D | Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.21 | |
Description
General part information
3420 Series
B498 N&L BLK/YEL 3420-D
