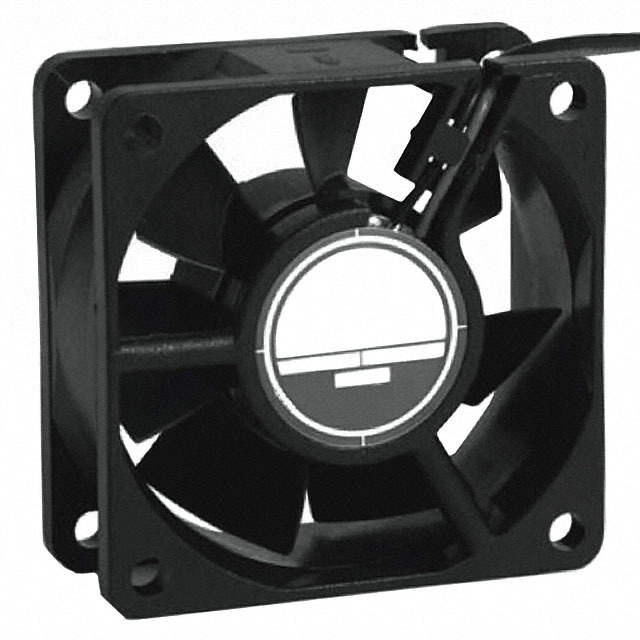

OD6025-12LB01A
ActiveOrion Fans
FAN AXIAL 60X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
OD6025-12LB01A
ActiveOrion Fans
FAN AXIAL 60X25MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD6025-12LB01A |
|---|---|
| Air Flow | 0.392 m³/min |
| Air Flow | 14 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 19 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| RPM | 2500 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 0.08 in H2O |
| Static Pressure | 20 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 63.96 g |
| Weight | 0.141 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 520 | $ 9.38 | |
Description
General part information
OD6025-12LB01A
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 14.0 CFM (0.392m³/min) 3 Wire Leads
