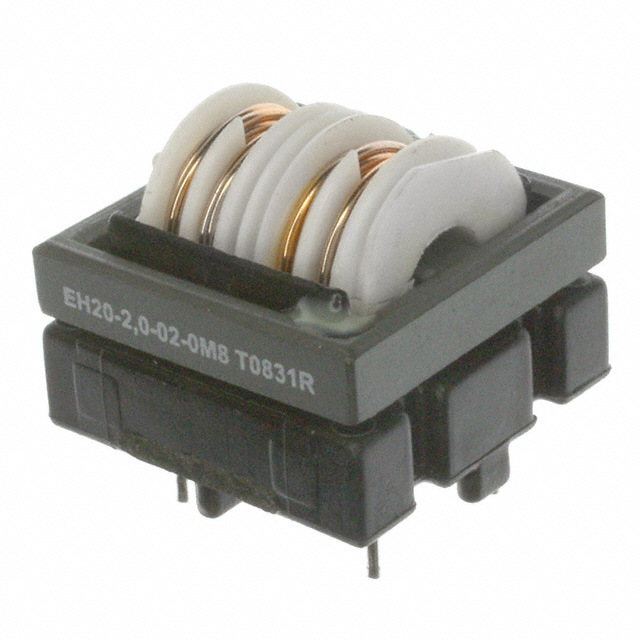

EH20-2.0-02-0M8

Active

Schaffner EMC Inc.

CMC 820UH 2A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 820UH 2A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	EH20-2.0-02-0M8

Current Rating (Max) [Max]	2 A
DC Resistance (DCR) (Max)	38 mOhm
Filter Type	Power Line
Height (Max)	18.8 mm
Height (Max) [Max]	0.74 in
Inductance @ Frequency	10 kHz, 820 µH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Horizontal
Package / Case	4 Lead
Size / Dimension [x]	21 mm
Size / Dimension [x]	0.827 in
Size / Dimension [y]	0.827 in
Size / Dimension [y]	21 mm
Voltage Rating - AC	250 V

CMC 820UH 2A 2LN TH

Part	Operating Temperature [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) (Max)	Voltage Rating - AC	Height (Max)	Height (Max) [Max]	Inductance @ Frequency	Current Rating (Max) [Max]	Package / Case	Package / Case	Filter Type	Number of Lines	Mounting Type
Schaffner EMC Inc. EH20-2.0-02-0M8	-25 °C, 100 °C	0.827 in	21 mm	21 mm	0.827 in	38 mOhm	250 V	18.8 mm	0.74 in	10 kHz, 820 µH	2 A	Horizontal	4 Lead	Power Line	2	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

820 µH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 38mOhm (Typ)
