Description
General part information

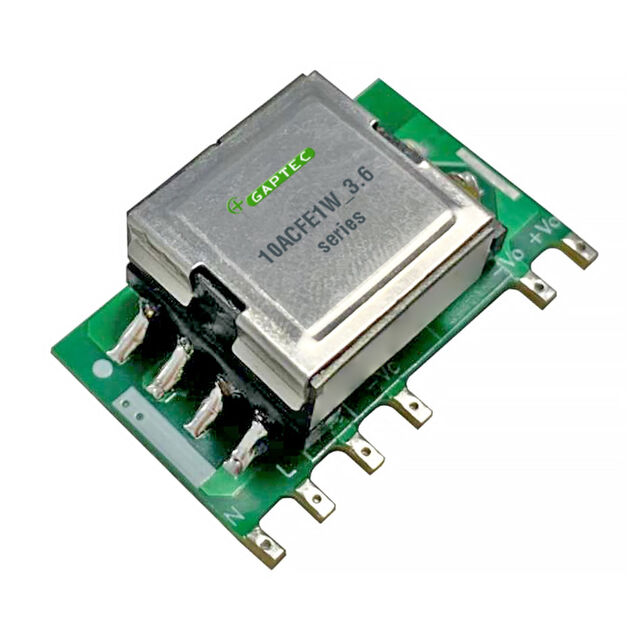

10ACFE1W_15S3.6
Open Frame AC DC Converters 1 Output 15V 667mA 85 ~ 305 VAC, 120 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 10ACFE1W_15S3.6 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 667 mA |
| Efficiency | 81 % |
| Line Regulation | 1 % |
| Load Regulation (Percent) | 3 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-SIP Module |
| Power (Watts) | 10 W |
| Size / Dimension Height | 0.79 in |
| Size / Dimension Length | 1.26 in |
| Size / Dimension Width | 0.59 in |
| Standard Number | 62368-1, 60950-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Output 1 | 15 V |
