Description
General part information
BUS003F

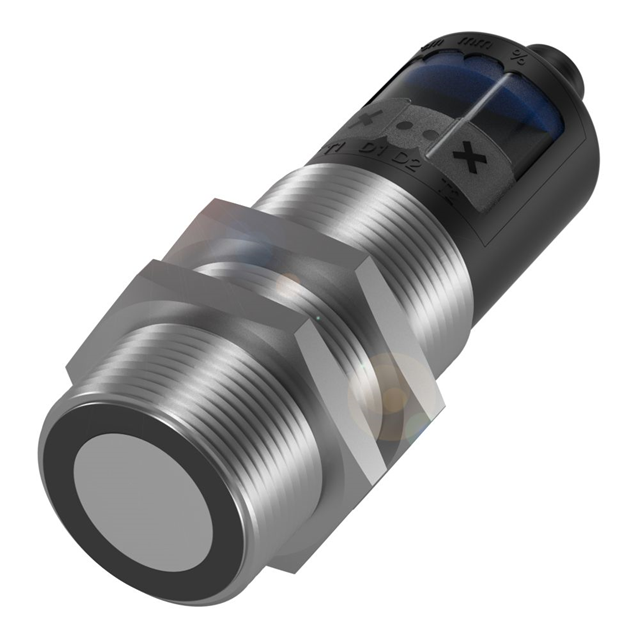

SENSOR PROX ULTRA 200-2000MM MOD
Technical Specifications
Parameters and characteristics for this part
| Specification | BUS003F |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP67 |
| Material - Body | Polybutylene Terephthalate (PBT), Brass, Thermoplastic Polyurethane (TPU) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Current and Voltage |
| Package / Case | Module |
| Sensing Distance Maximum | 78.74 " |
| Sensing Distance Minimum | 7.874 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 9 VDC |
